Features
-Speed Compatibility: Supports Ethernet speeds up to 100 Mbps (Fast Ethernet), making it suitable for networks requiring moderate data transfer rates.
-Connector Type: RJ45 connector, which is the standard interface for Ethernet cables and widely used in networking equipment.
-Tab-Up Orientation: Designed with the release tab facing upward, ensuring easy insertion and removal of the connector into Ethernet ports.
-1x1 Configuration: Refers to a single-port configuration, typical for RJ45 connectors used in Ethernet networking devices.
Applications
1.VoIP Phones and Communication Devices
2.Industrial Automation and Control Systems
3.Embedded Systems and IoT Devices
4.Consumer Electronics
Specifications
Insertion Loss: 1-100MHZ -1.0dB MAX
Return Loss: 1-30MHZ -16.0dB MIN
30-60MHZ -14.0dB MIN
60-80MHZ -10.0dB MIN
Cross Talk: 1-30MHZ -40.0dB MIN
30-60MHZ -35.0dB MIN
60-80MHZ -30.0dB MIN
CMR: 1M-100MHZ -35dB MIN
Hi-Pot:1500v AC 6S 1mA
OCL:350uH MIN @ 100KHZ 100mV 8mA DC
Contacts: 0.35mm thick phos bronze plated with 6u' gold in contact area
Housing Material:LCP Black
Operating temperature range: 0 ℃-+70 ℃
Technical Documents
Please contact us for more information.

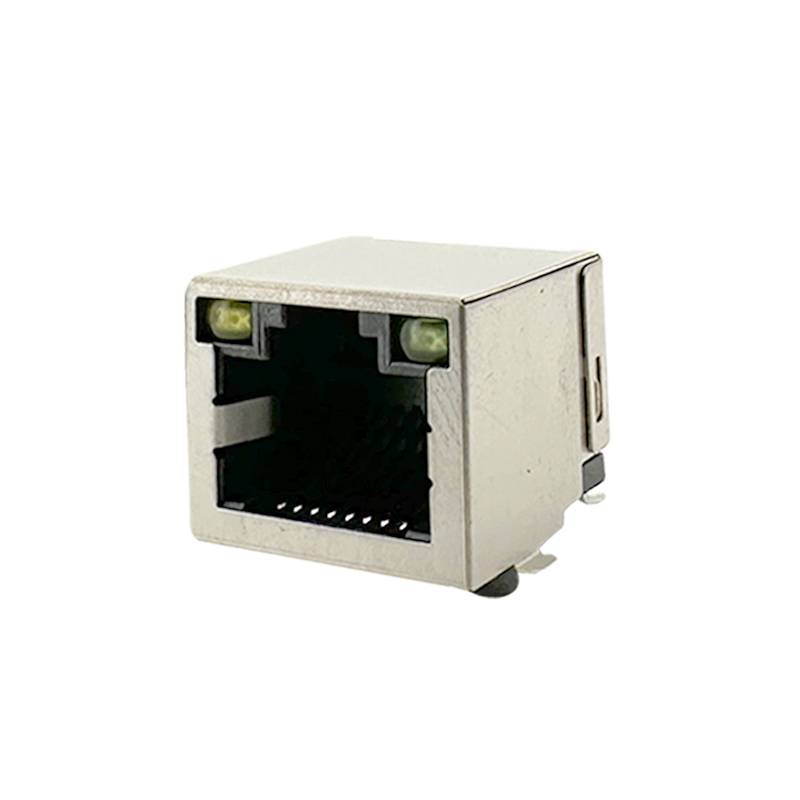

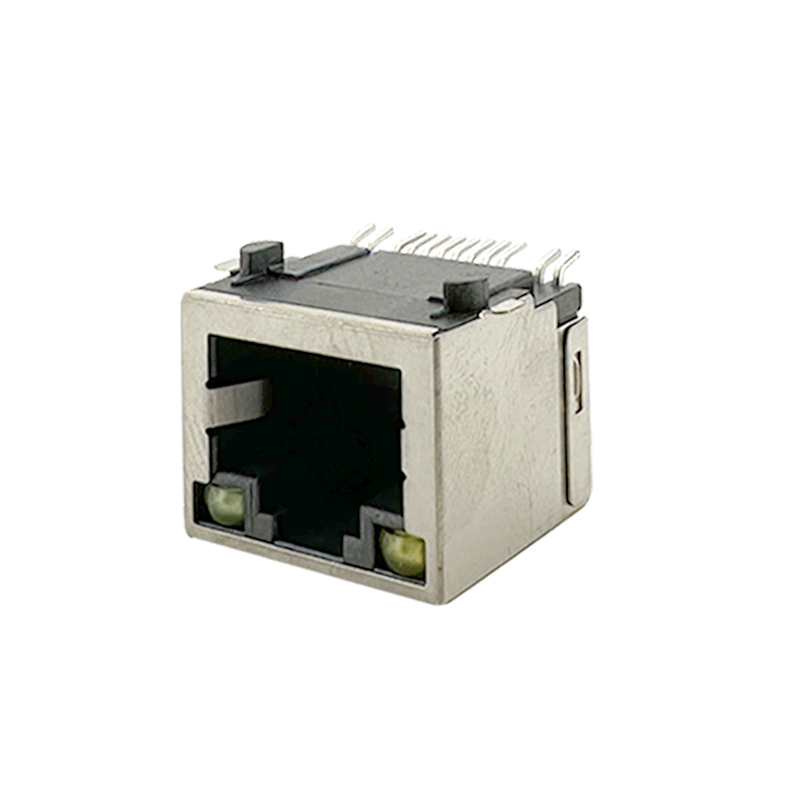

100 Base 1x1 Tab-up RJ45:RHTLYL130
