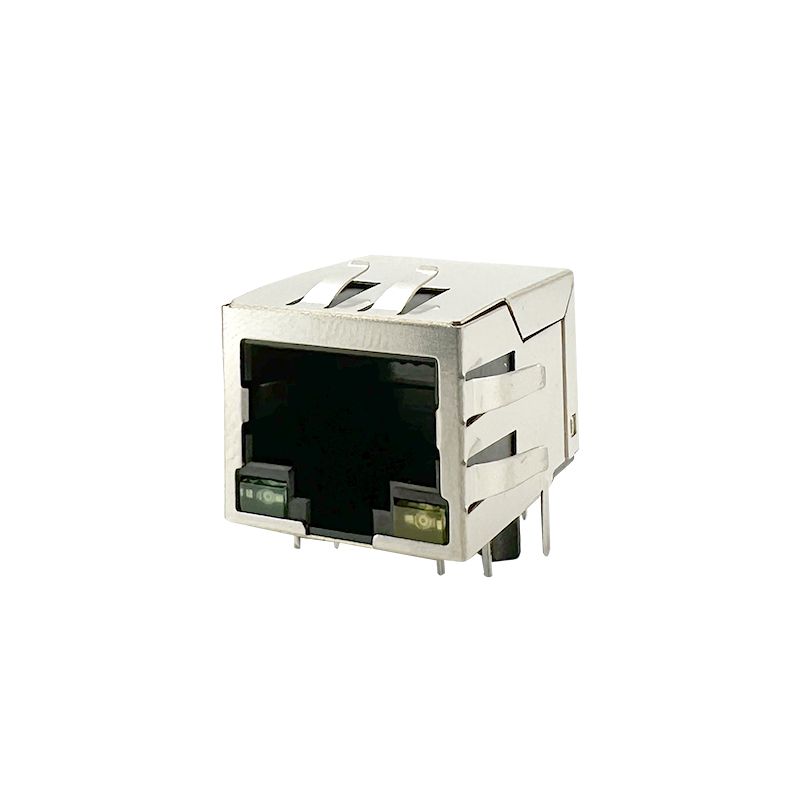

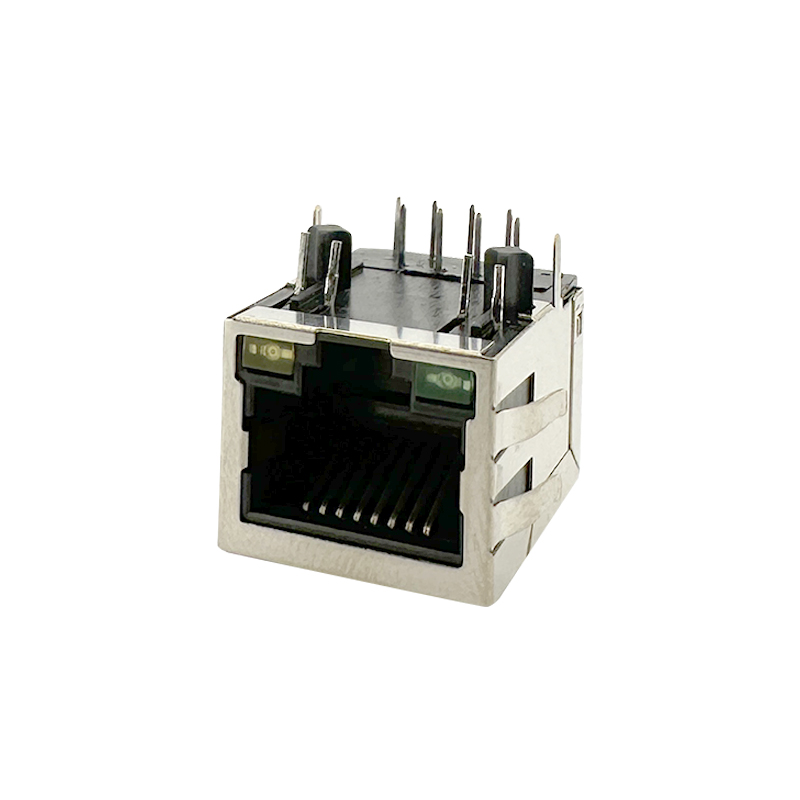

    100Base 1x 1 Tab-down RJ45 : RE-C-TL010

    Series Part No: RE-C-TL010
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N
    Electrical:
    1.Voltage ratign:125V AC.
    2.Insulation resistance: 500 megohms MIN @500VDC.
    3.Contact resistance: 50 milliohms Max.
    4.T/R: TX=1CT:1CT(?2%) & RX=1CT:1CT(?2%).
    5.OCL:350uH Min.at 100KHz 100mV 8mA DC.
    6.Insertion Loss:-1.0 dB Max 1MHz to 100MHz.
    7.Return loss:-16dB Min From 1MHz to 30MHz;
    -14dB Min From 30MHz to 60MHz.
    -10dB Min From 60MHz to 80MHz.
    8.Cross talk: -40dB Min From 1MHz-30MHz;
    -35dB Min From 30MHz-60MHz;
    -30dB Min From 60MHz-100MHz;
    9.CMR: -35dB Min From 1MHz-100MHz;
    10.Hi-Pot: 1500V AC 6S 1mA
