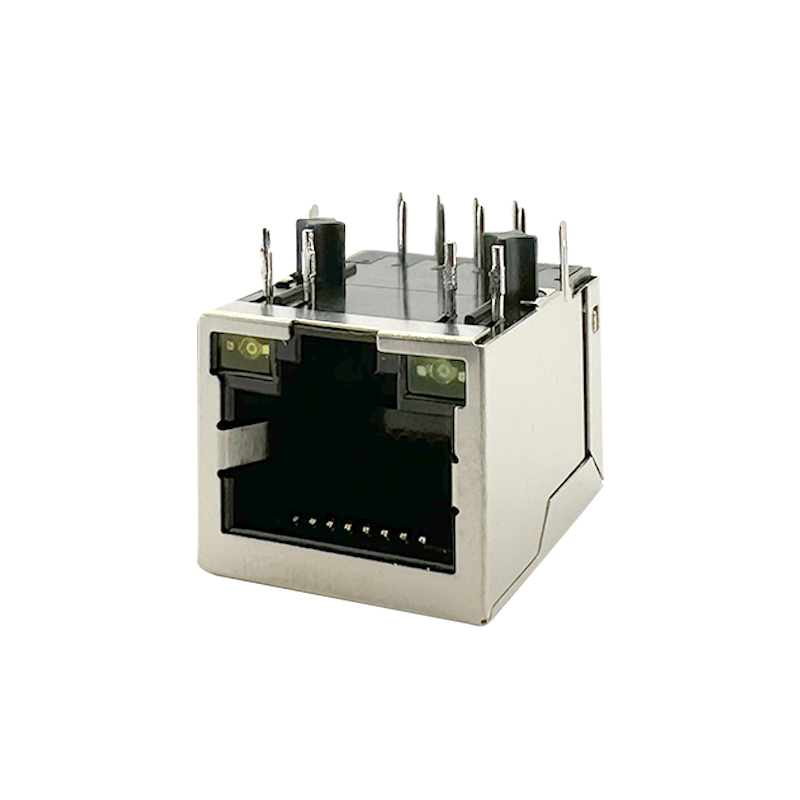

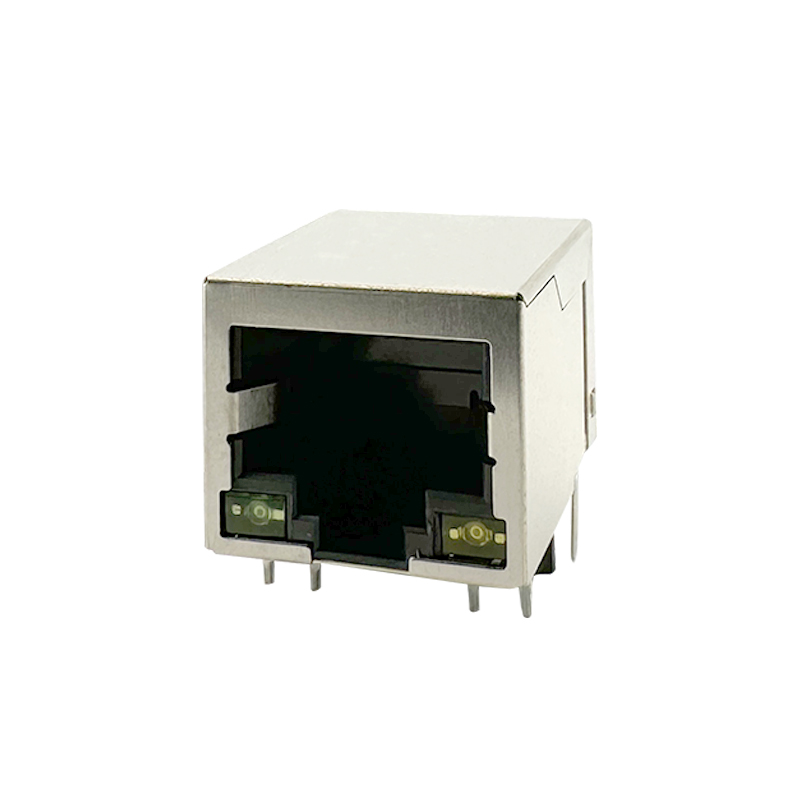

    10/100 BASE 1x1Tab-Down RJ45: RHTLYL051

    Series Part No: RHTLYL051
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Connector Type: RJ45 refers to the standard connector used for Ethernet cables.

    -Tab-Down Orientation: This indicates the orientation of the release tab on the connector, which is designed to be inserted with the tab facing downward.

    -1x1 Configuration: Indicates a single port (1x1), which is a standard configuration for RJ45 connectors used in Ethernet networking.

    -Physical Compatibility: Designed to fit into standard Ethernet ports found on computers, switches, routers, and other networking devices.

    Applications

    1.Networked Printers

    2.Switches and Hubs

    3.Routers

    4.VoIP Phones

    Specifications

     @ 25oC unless otherwise noted:

    1.Turn Ratio(+/-2%):

    TX=1CT :1CT RX=1CT:1CT

    2.Inductance OCL:

    350uH Min @100KHz/0.1V ,8mA DC Bias

    3.Insertion Loss:

    -1.0dB Max @1.0-100MHz

    4.Return Loss:

    -20dB Min @1-10MHz

    -16dB Min @10-30MHz

    -12dB Min @30-60MHz

    -10dB Min @60-100MHz

    5.Cross talk:

    -40dB Min @1-30MHz

    -35dB Min @30-60MHz

    -30dB Min @60-100MHz

    6.Common Mode Rejection:

    -30dB Min @1-50MHz

    -20dB Min @50-150MHz

    7.HIPOT TEST :1500V AC 1mA 6S

    8.OPERA TING TEMPERA TURE RANGE:0-70°C

    Technical Documents

    Please contact us for more information.
