Features
-Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with various Ethernet cables and networking equipment.
-Material: Constructed from durable materials such as plastic and metal components, ensuring robustness and longevity in networking environments.
-Termination: Supports industry-standard termination methods, facilitating reliable connections to Ethernet cables through soldering or crimping.
-Durability: Designed to withstand frequent plugging and unplugging, mechanical stress, and environmental factors, ensuring consistent performance and connectivity over time.
Applications
1.Industrial Automation and Control
2.Patch Panels
3.Server Racks and Data Centers
4.Telecommunications and VoIP Systems
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Shield: Brass,Tin Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

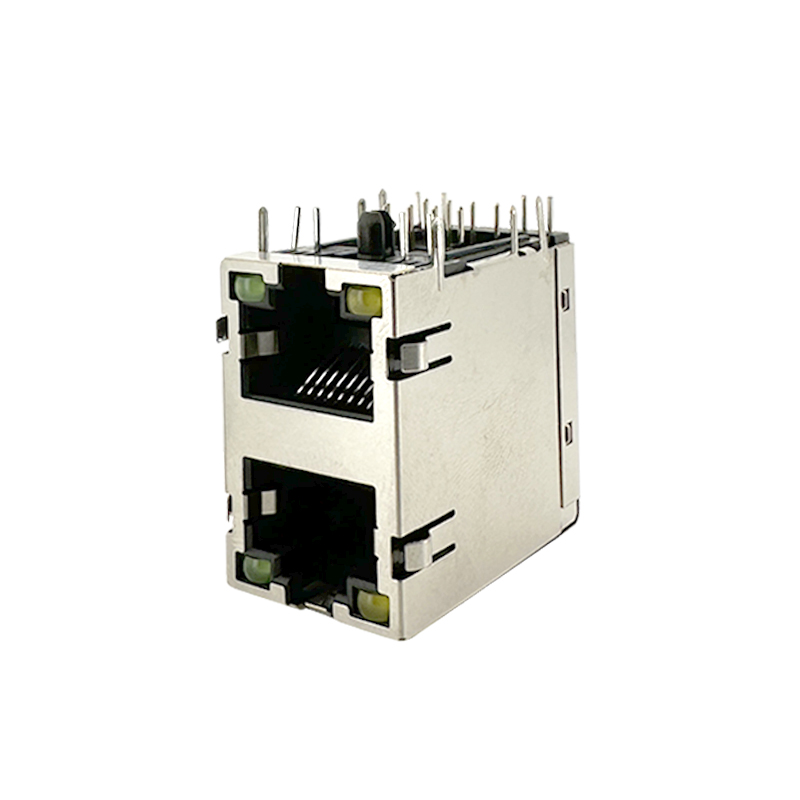

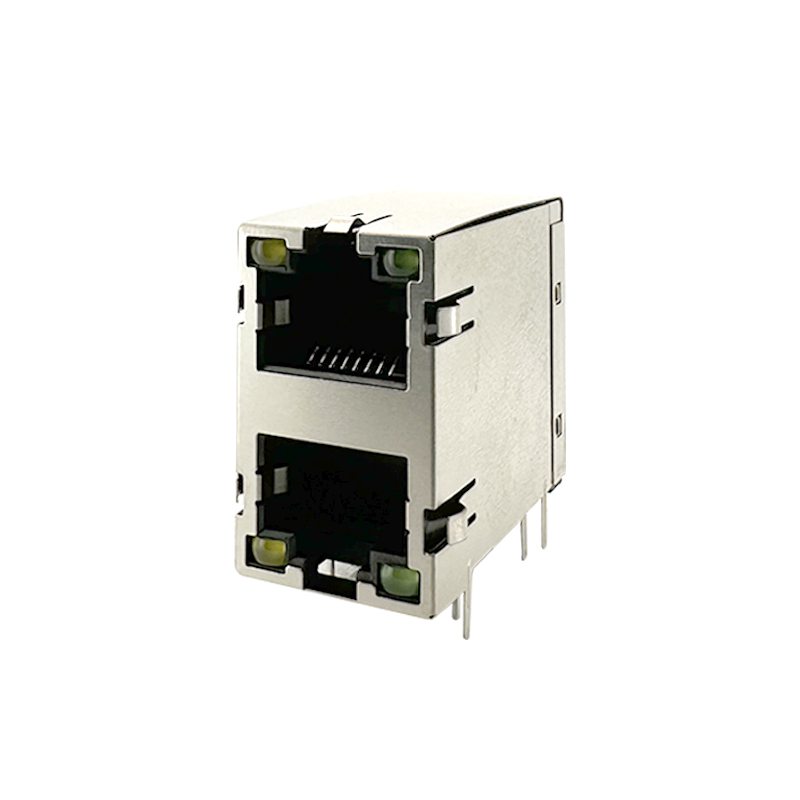

RJ45-8P8C 2x1 jack with LED :RHTLY13-8P8C-2X1
