Features
-Connector Type: RJ45-8P8C refers to Registered Jack 45 with 8 positions and 8 contacts, accommodating Ethernet cables with eight conductors (8P8C) arranged in four pairs.
-Configuration: The "2x4" designation indicates that the jack is configured to accommodate two separate Ethernet connections, each utilizing four contacts. This configuration allows for dual Ethernet connections through a single RJ45 port.
-Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with a wide range of Ethernet cables and networking equipment compliant with Cat5, Cat6, and Cat6a standards.
-Design: Designed to support dual-port functionality, enabling simultaneous connections for different networking applications or devices within the same physical space.
Applications
1.Industrial Automations
2.Telecom Equipment
3.Enterprise Infrastructure
4.Media & Entertainment Systems
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Shield: Brass,Tin Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

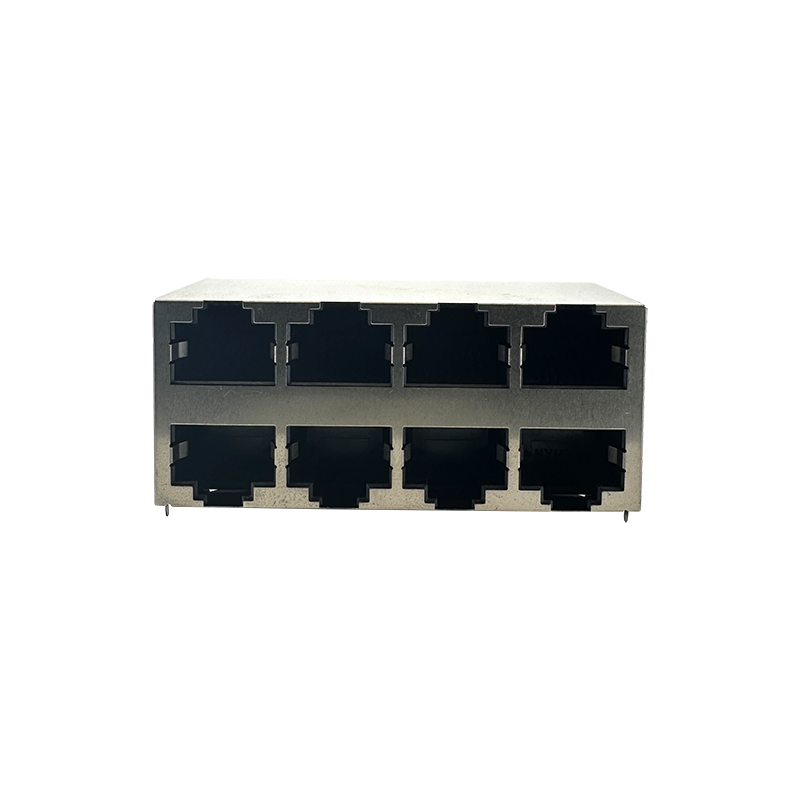

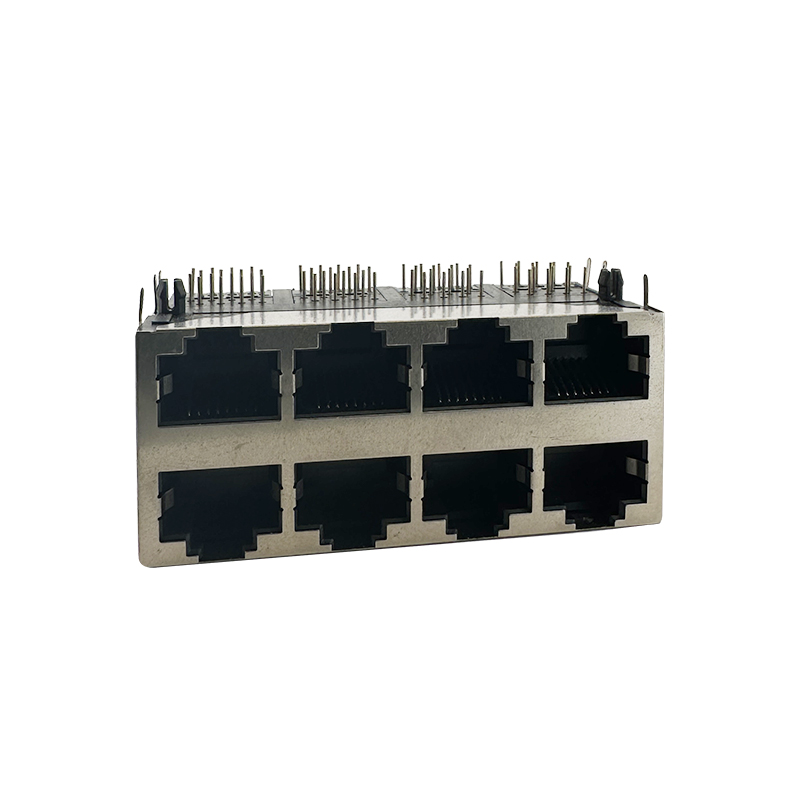

RJ45-8P8c 2x4 Jack:RHTLY02-8P8C 2X4
