Features
-Connector Type: RJ45-8P8C refers to Registered Jack 45 with 8 positions and 8 contacts, supporting Ethernet cables with eight conductors (8P8C) arranged in four pairs.
-Half Shield Design: The half shield provides partial electromagnetic interference (EMI) protection, shielding the connector and cable from external electromagnetic interference and reducing signal degradation.
-Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with a wide range of Ethernet cables and networking equipment.
-Construction: Typically made from durable materials such as plastic and metal components, designed to withstand mechanical stress, frequent plugging and unplugging, and environmental factors.
Applications
1.Industrial Automation
2.Telecommunications
3.Commercial and Office Environments
4.Residential Networking
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze
Plating: Gold Plating
Shield: Brass,Tin Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

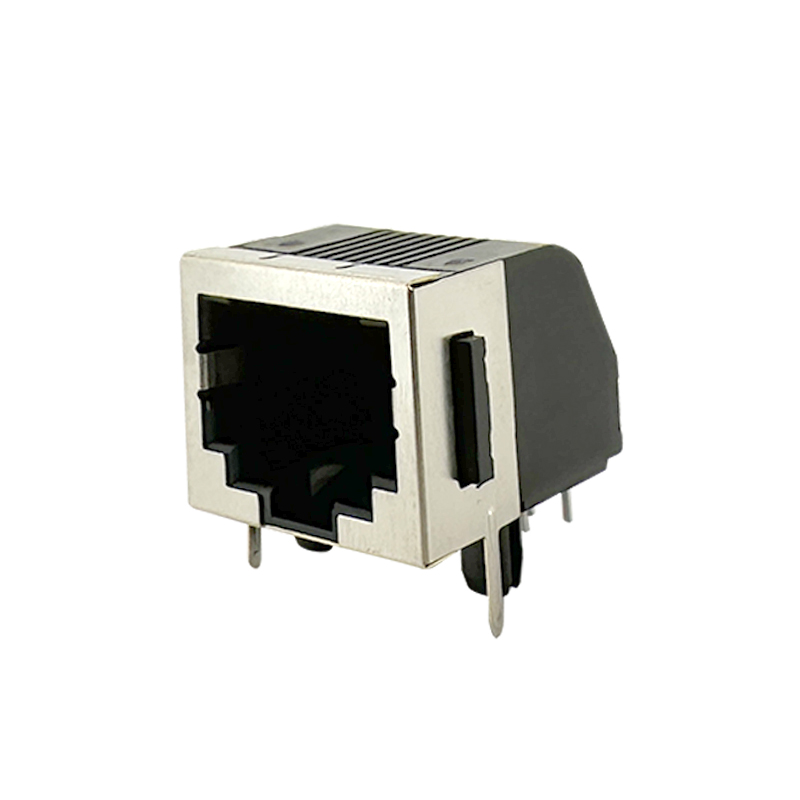

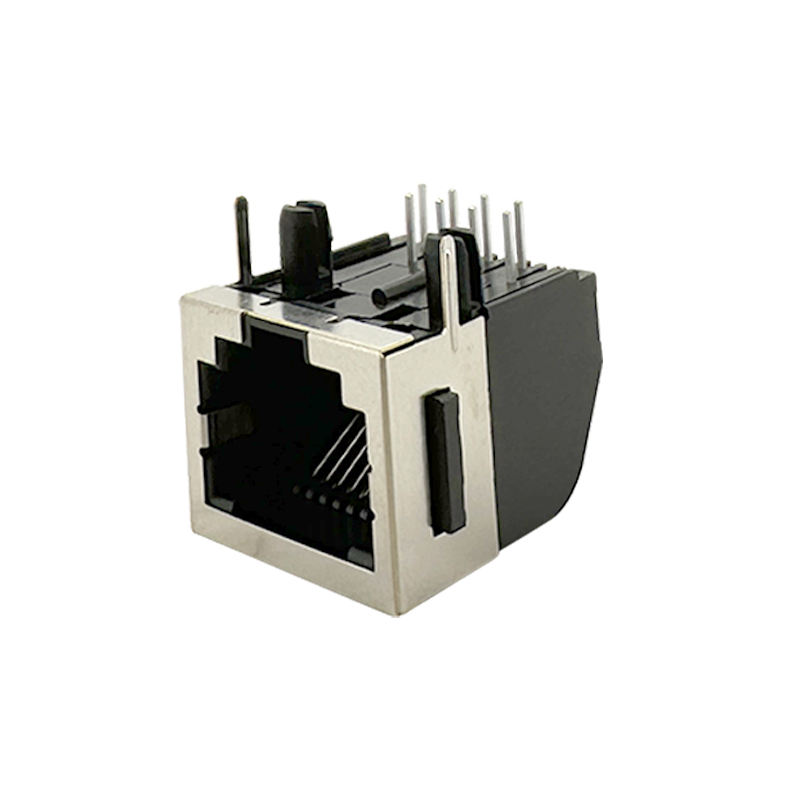

RJ45-8P8C jack with Half Shield:RHTLY19-8P8C
