Features
-The jack features LED indicators that are used to visually show the connection status. These LEDs often indicate whether a network connection is established or whether the device is receiving data. The LEDs can be
-Typically used with Cat 5e, Cat 6, or Cat 6a cables for reliable data transmission.
-Commonly used in panel mount or surface-mount designs, and often installed in networking panels or devices for easy access..
-Some models support tool-less installation, making it convenient for users to connect and secure cables without additional tools.
Applications
1.Networking Equipment
2.Telecommunication Systems
3.Computers and Servers
4.TIndustrial Automation
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Shield: Brass,Tin Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

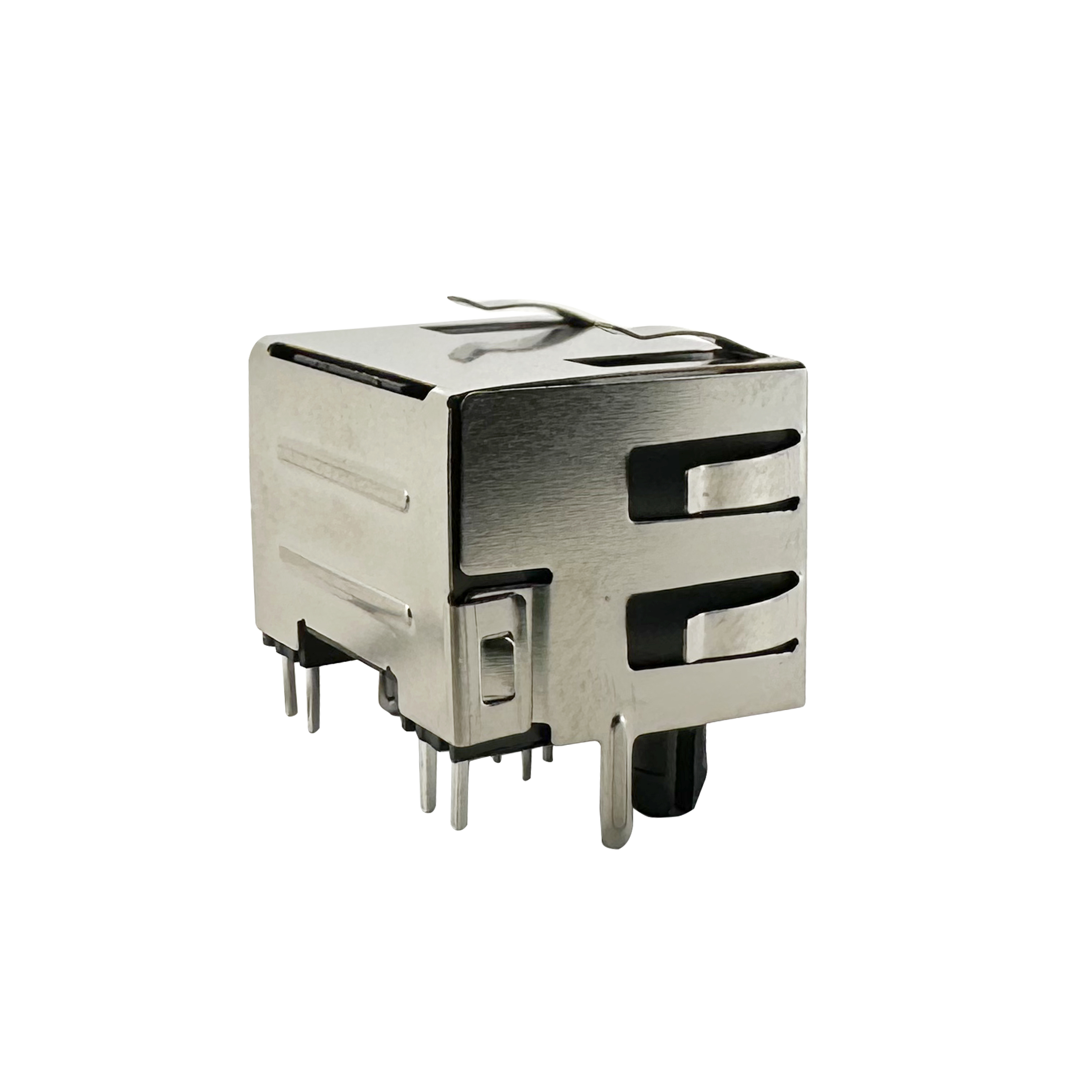

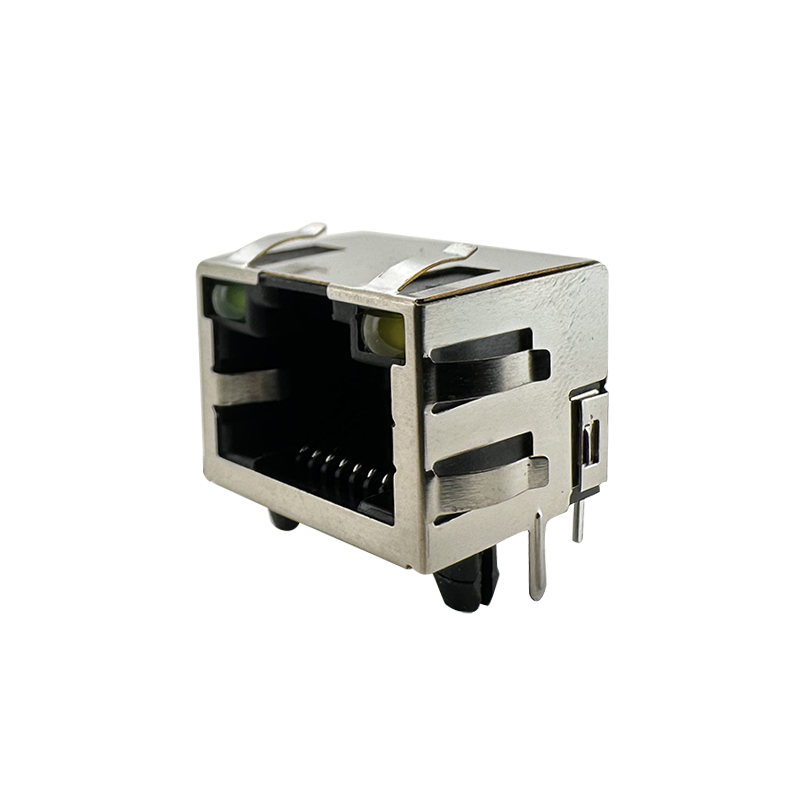

RJ45-8P8C 1x1 Jack with LED:RHTLY08-8P8C 1X1
