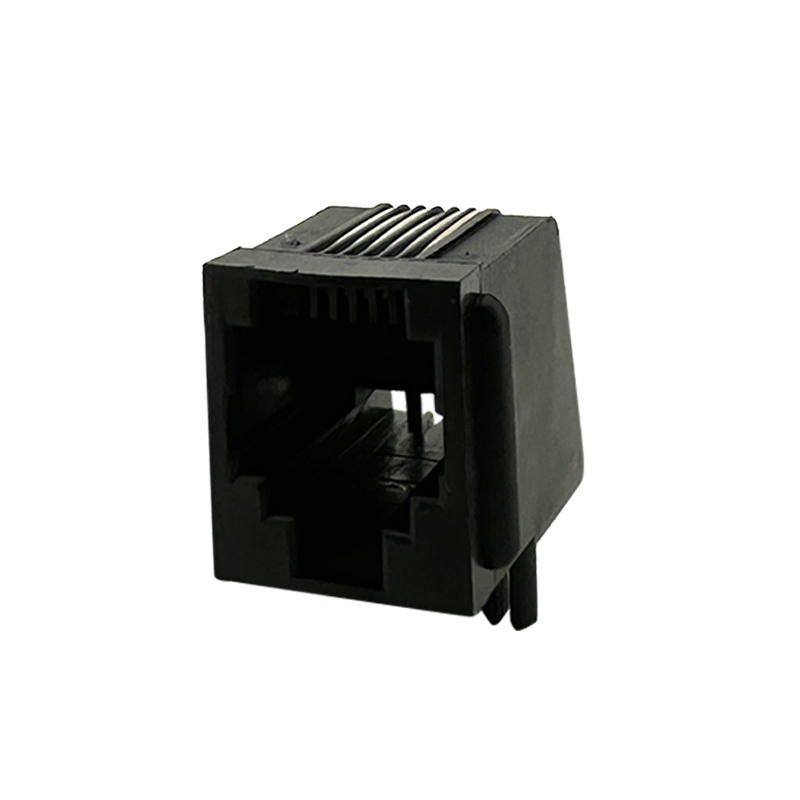

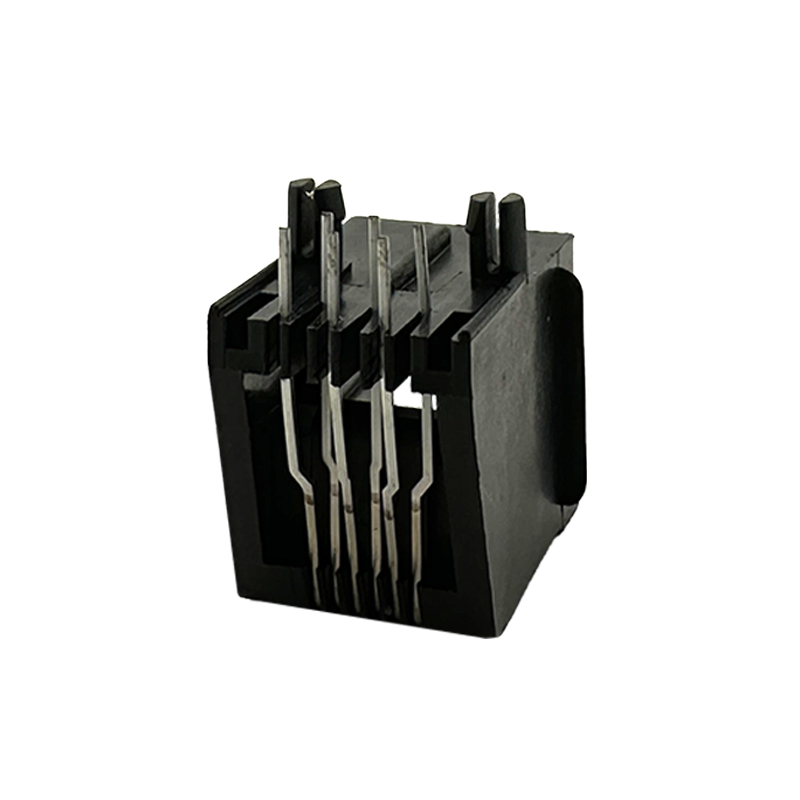

    RJ45-8P8C Jack:RHTLY45-8P8C

    Series Part No: RHTLY45-8P8C
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Compact Design: Rectangular shape with snap-in latch for secure cable connection

    -Housing Material: Flame-retardant thermoplastic (UL94V-0 rated)

    -Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with various Ethernet cables and networking equipment.

    -Shielded/Unshielded: Available in both versions for EMI protection when needed

    Applications

    1.Ethernet Networking

    2.Power over Ethernet

    3.Industrial Ethernet Systems

    4.Telecommunications Equipment

    Specifications

    Material:

    Housing:    PBT+Glass Filled Polyester

    Flammability Rating : UL94V-0

    Contacts:  Phosphor Bronze

    Plating:     Gold Plating

    Electrical:

    Voltage Rating:           125VAC

    Current Rating:           1.5A

    Contact Resistance:    30mΩ Max.

    Insulation Resistance: 500MΩ Min.

    Dielectric Strength:    1000VAC Rms 50Hz,1 Min.

    Durability:                  600 cycles Min.

    Operation Temperature:-40°C~+70°C

    Technical Documents

    Please contact us for more information.
