Features
-The LEDs are useful for network troubleshooting, helping users see whether a connection is established and whether there is data traffic.
-1x1 refers to a single port configuration, meaning there is one RJ45 port in this jack, typically used for one Ethernet connection.
-Supports Ethernet standards: It works with Cat5e, Cat6, and Cat6a cables, providing high-speed networking support.
-Designed for long-term durability, it can withstand thousands of insertions and removals.
Applications
1.Networking Devices
2.Home and Office Networking
3.Telecommunication Systems
4.Data Centers and Server Rooms
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

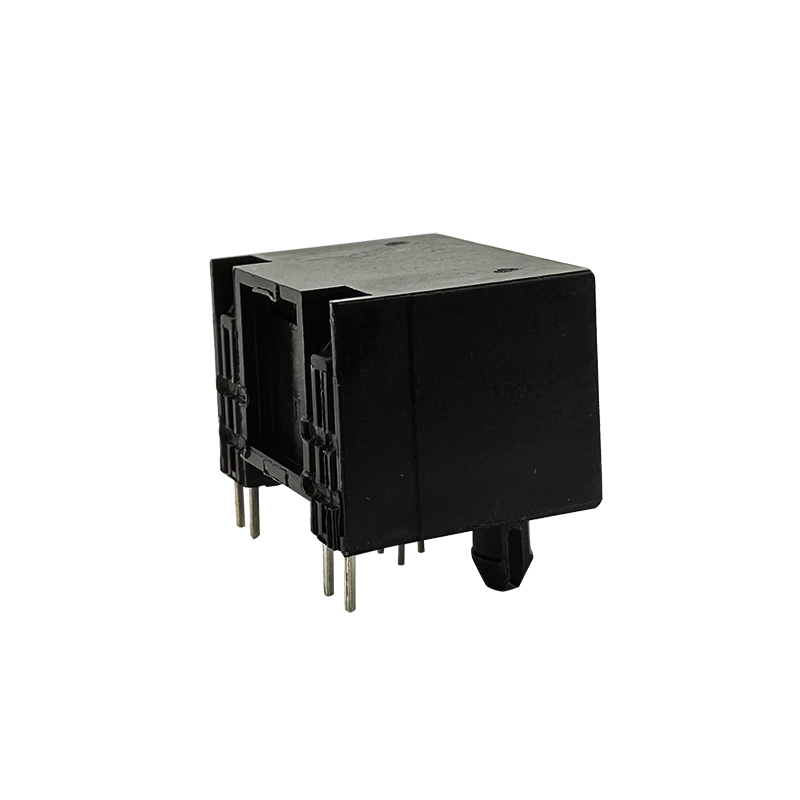

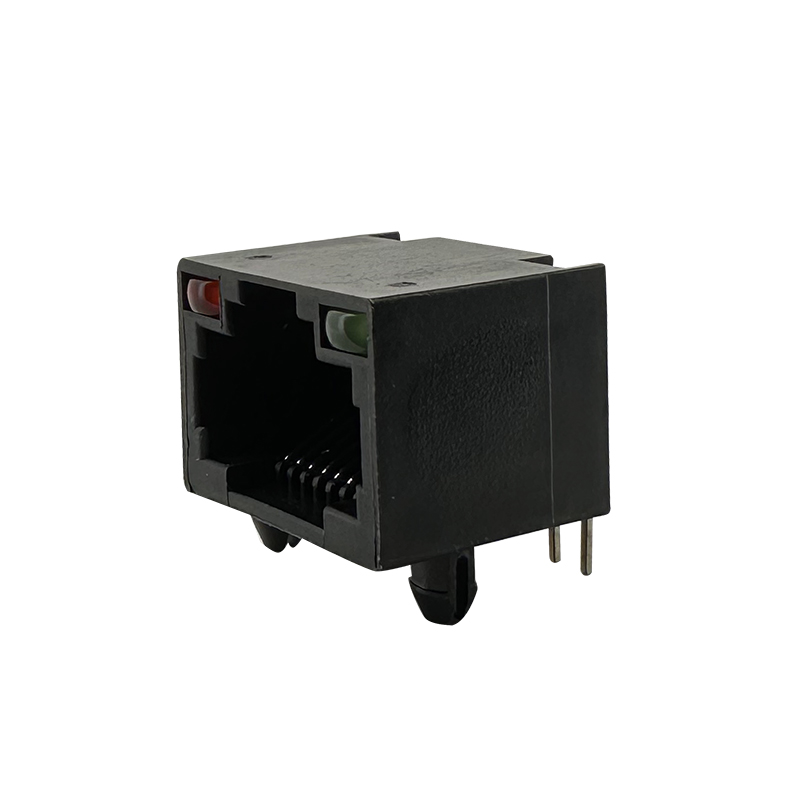

RJ45-8P8C 1x1 Jack with LED:RHTLY15-8P8C 1X1
