Features
-Configuration: 4P4C (4 Position 4 Conductor), meaning it has 4 positions and 4 conductors (pins). This configuration is typical for single-line telephone connections.
-Compatibility: Designed to accept standard RJ11 modular plugs, ensuring compatibility with various telephone devices, including analog phones, fax machines, and modems.
-Size: Compact and standardized size suitable for integration into telephone equipment, wall plates, patch panels, and other devices requiring telephone connectivity.
-Termination: Allows for easy termination of telephone cables using IDC (Insulation Displacement Connection) terminals or soldering, depending on the installation method.
Applications
1.Residential Telephony
2.Office Telephony
3.Retail and Hospitality
4.Industrial Applications
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

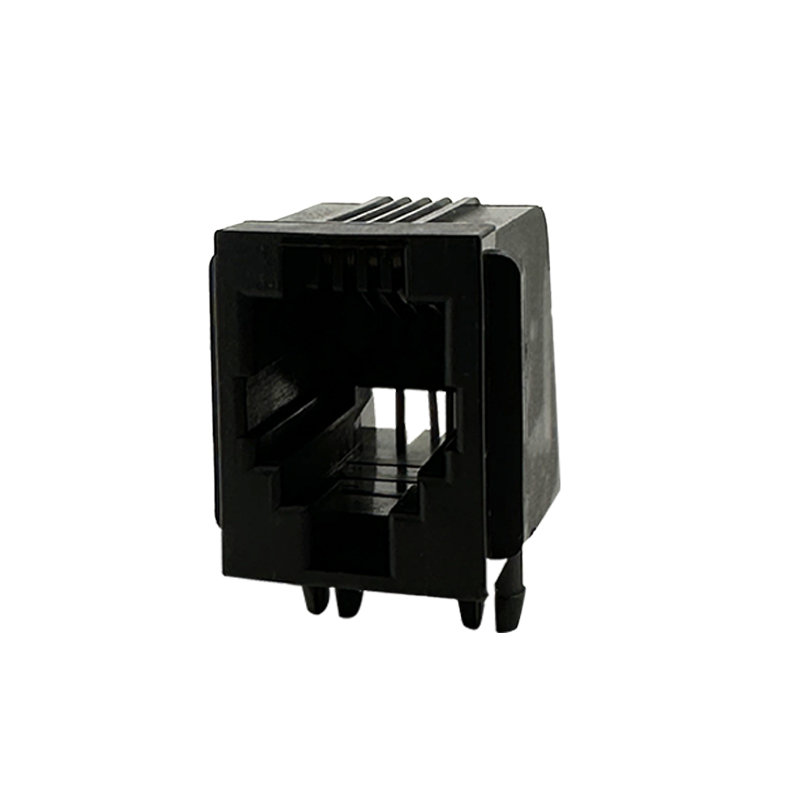

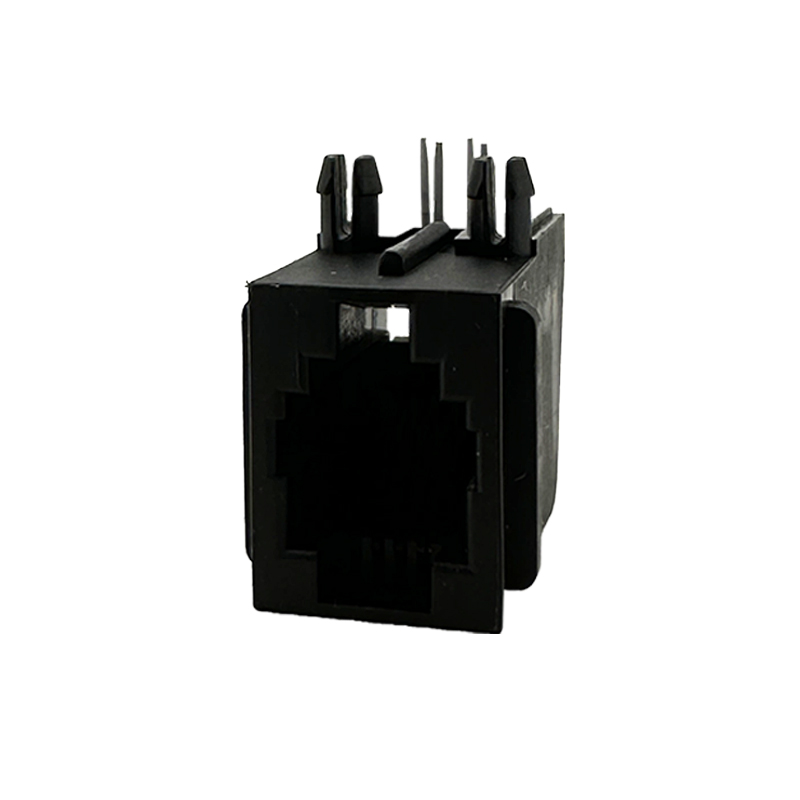

RJ11-4P4C Jack:RHTLY43-4P4C
