Features
-Size and Design: The shell typically adds a slightly larger profile compared to standard RJ12 connectors but provides added protection and functionality.
-Termination: Supports standard termination methods such as IDC (Insulation Displacement Connection) or soldering, depending on the specific connector design.
-Compatibility: Compatible with standard RJ12 modular plugs, ensuring interoperability with a wide range of telecommunications devices, including telephones, fax machines, modems, and certain networking equipment.
-Signal Integrity: Maintains clear audio transmission and data integrity over standard telephone lines, ensuring reliable communication and connectivity.
Applications
1.Residential Telephony
2.Office Environments
3.Industrial Settings
4.Data Networking
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Shield: Brass,Tin Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

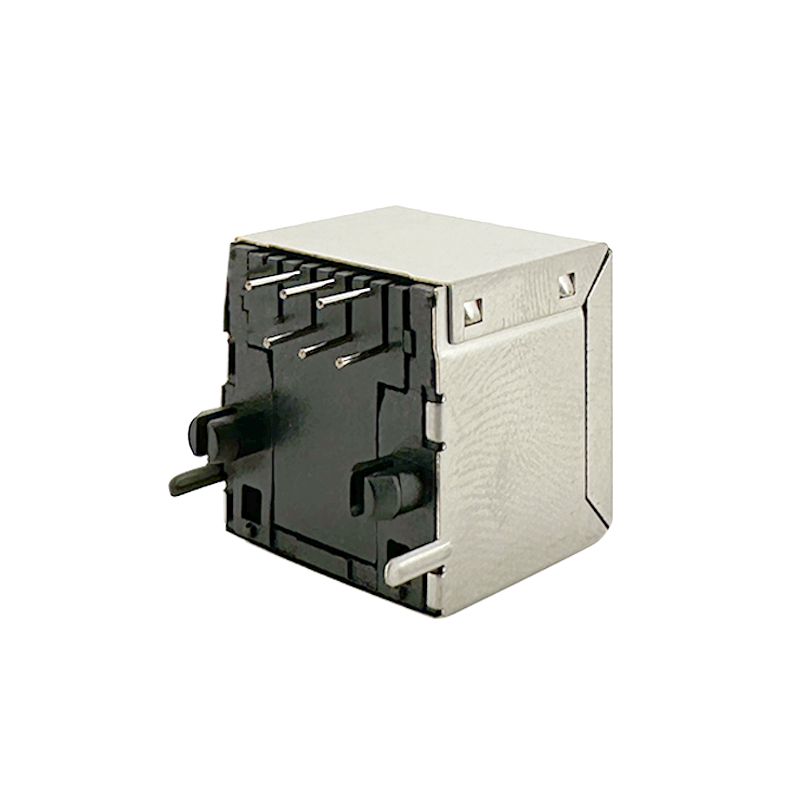

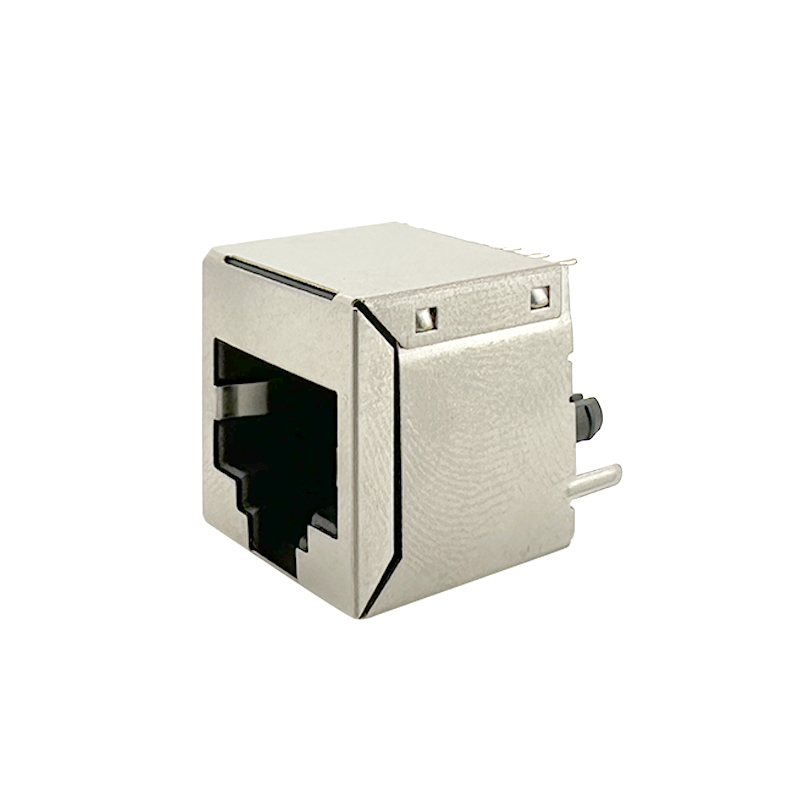

RJ12-6P6C Jack,with Shell:RHTLYC25-6P6C
