Features
-Grounding Tabs: Often includes tabs for connecting the shield to the chassis or PCB ground
-EMI/RFI Protection: Reduces crosstalk and signal loss in noisy environments
-Full Metal Shielding: Surrounds the connector for 360° protection
-Housing Material: Flame-retardant thermoplastic (UL94V-0)
Applications
1.Industrial Networking
2.Data Centers & Enterprise Networking
3.IP Surveillance & Security Systems
4.Medical and Military Equipment
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Shield: Brass,Tin Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

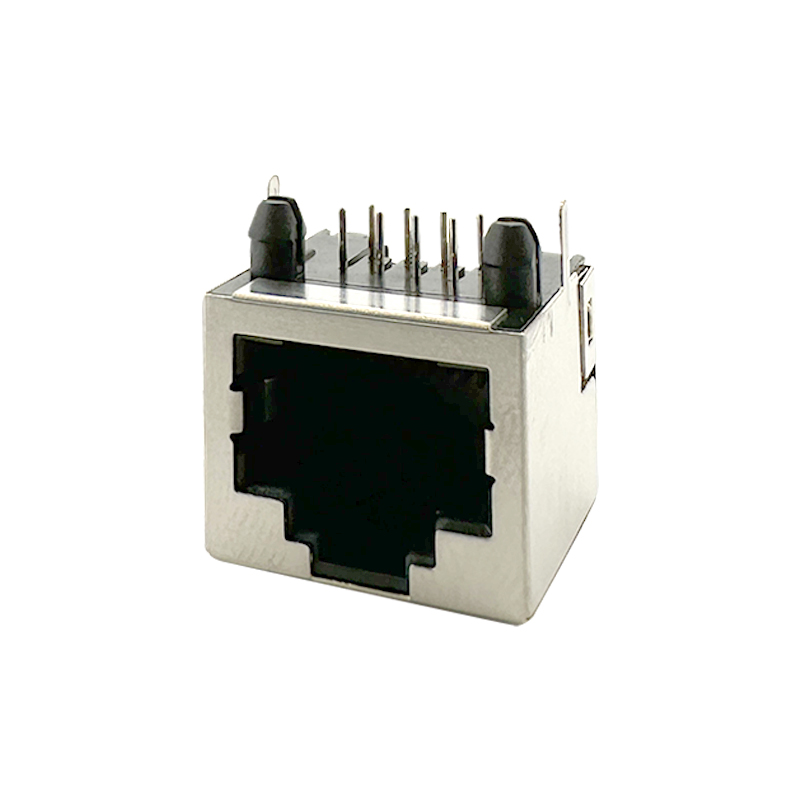

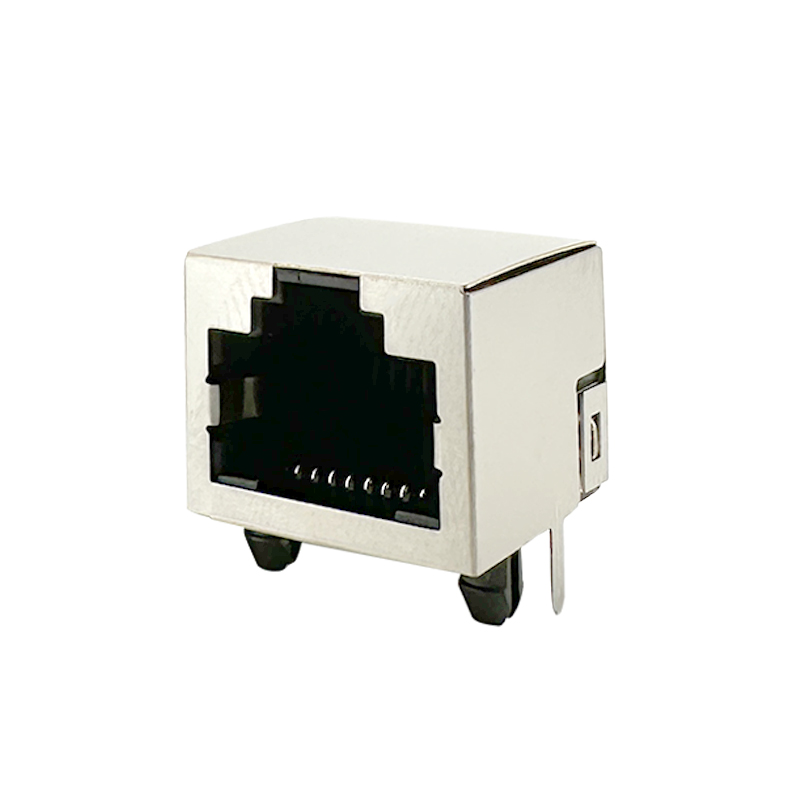

RJ45-8P8C Jack with Shield :RHTLY22-8P8C
