Features
-Configuration: 6P6C (6 Position 6 Conductor), meaning it has 6 positions and 6 conductors (pins). This configuration is typically used for multi-line telephone connections and certain data applications that require additional conductors.
-Compatibility: Designed to accept standard RJ12 modular plugs, ensuring compatibility with various telecommunications devices, including multi-line telephones, analog modems, and certain networking equipment.
-Versatility: Suitable for various applications where multi-line analog telephone connections or specific data connections using the RJ12 standard are needed, including homes, offices, industrial environments, and telecommunications infrastructure.
-Signal Integrity: Maintains clear audio transmission and signal integrity over standard telephone lines, ensuring quality voice communication for multi-line telephony applications.
Applications
1.Telecommunications Infrastructure
2.Industrial Applications
3.Specialized Telecommunications Equipment
4.Multi-Line Telephony
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

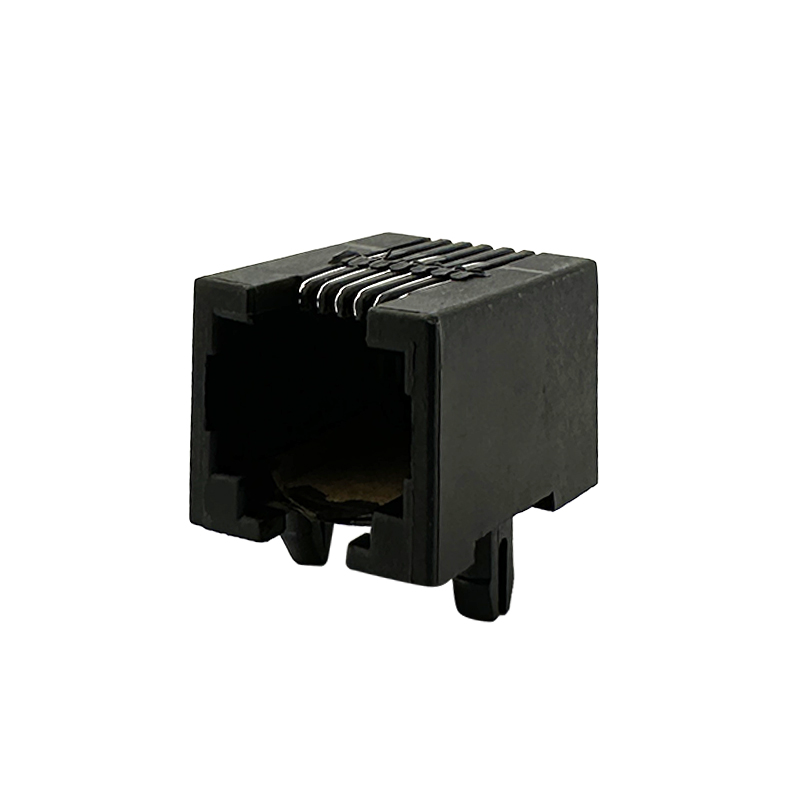

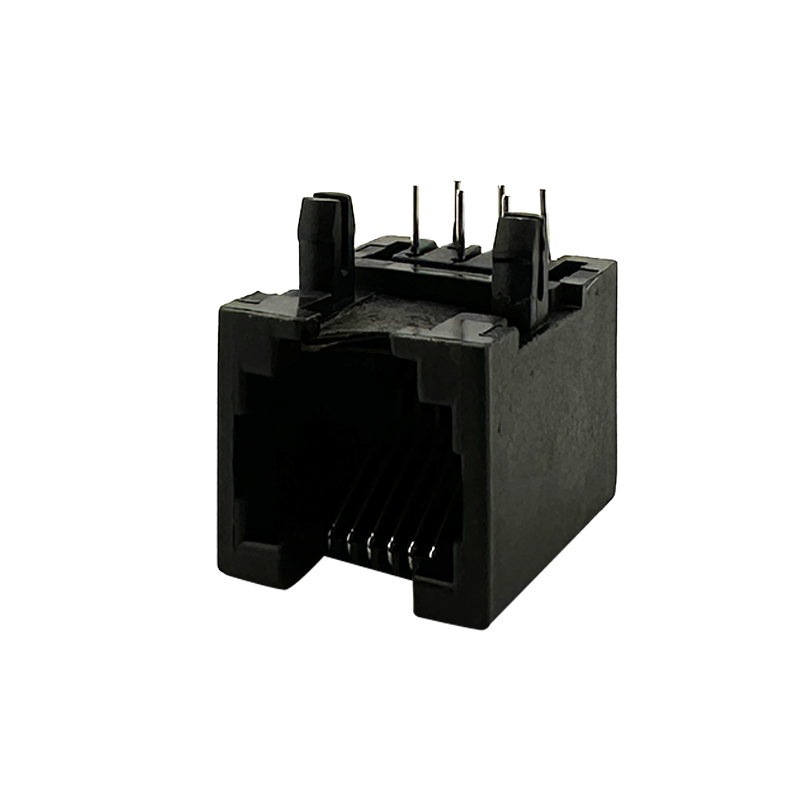

RJ12-6P6C Jack:RHTLY02-6P6C
