Features
-It is compatible with cables that have 6 conductors, which are often used in certain telephone systems or other multi-line systems.
-The jack typically comes in a durable plastic housing to protect the internal contacts and ensure secure connections.
-The RJ12-6P6C jack is often used for telephone lines, fax machines, and multi-line telephone systems. It is also used for serial communication in some devices.
-These jacks are commonly installed in a straightforward manner, often used in residential or commercial settings to facilitate easy connections between devices.
Applications
1.Telephone Systems
2.Fax Machines
3.Data Communication
4.Home Automation Systems
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

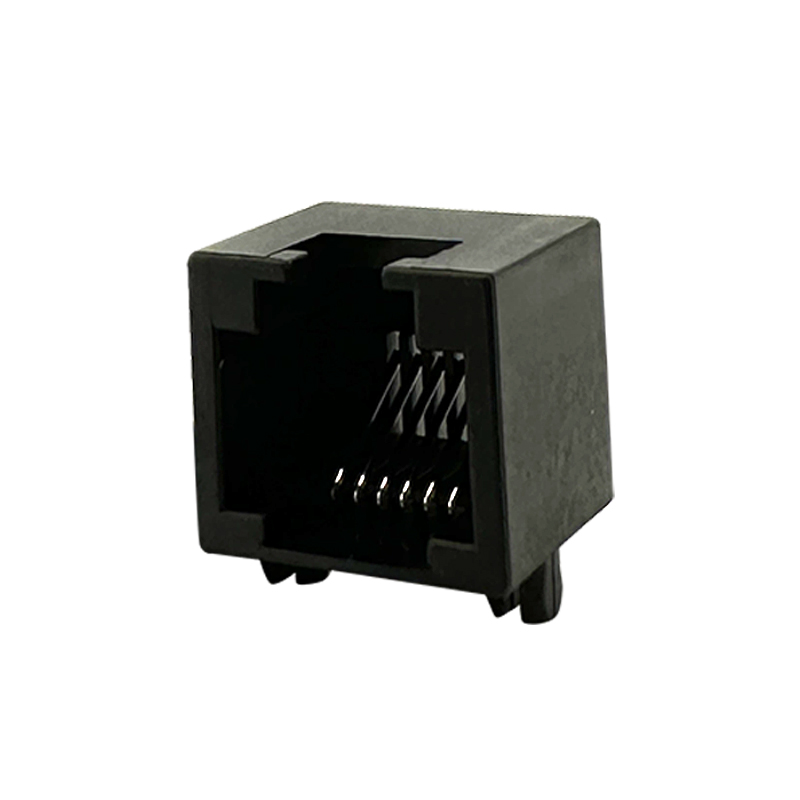

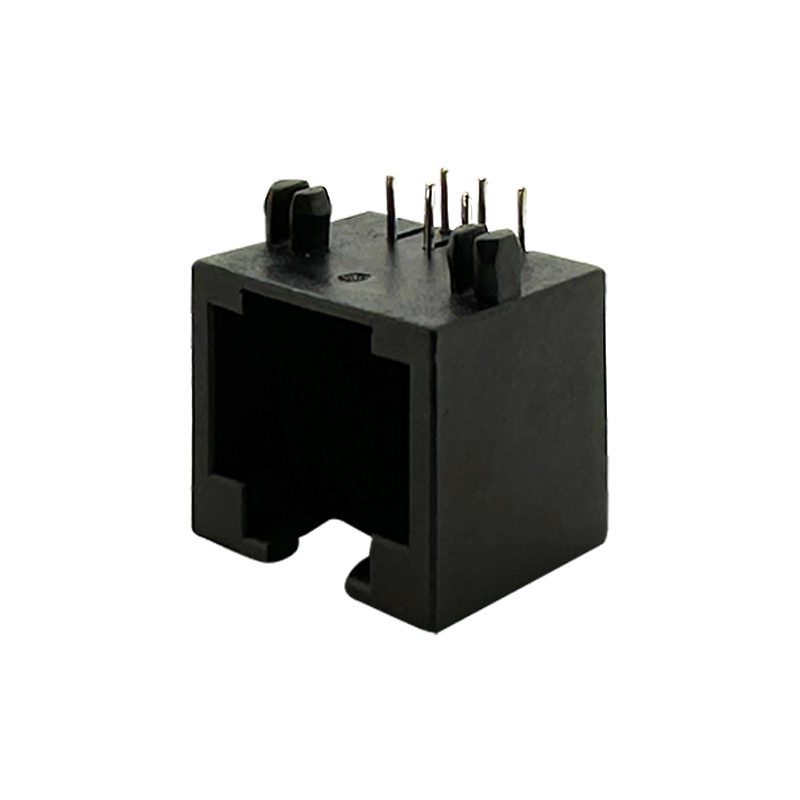

RJ12-6P6C Jack:RHTLY17-6P6C
