Features
-The RJ12 jack is part of the modular connector family, which means it can be easily plugged into compatible devices like phones, networking equipment, or intercom systems.
-Its modular design allows for easy replacement or upgrade, as it can be detached and reconnected without complex tools.
-The RJ12-6P6C jack is designed to be used with 6-wire cables, enabling it to handle more signals compared to other connectors like RJ11 (which supports fewer wires).
-This makes it ideal for multi-line telephone systems, fax machines, and some data transfer applications.
Applications
1.Multi-Line Telephone Systems
2.Fax Machines
3.Intercom and Communication Systems
4.Security Systems
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

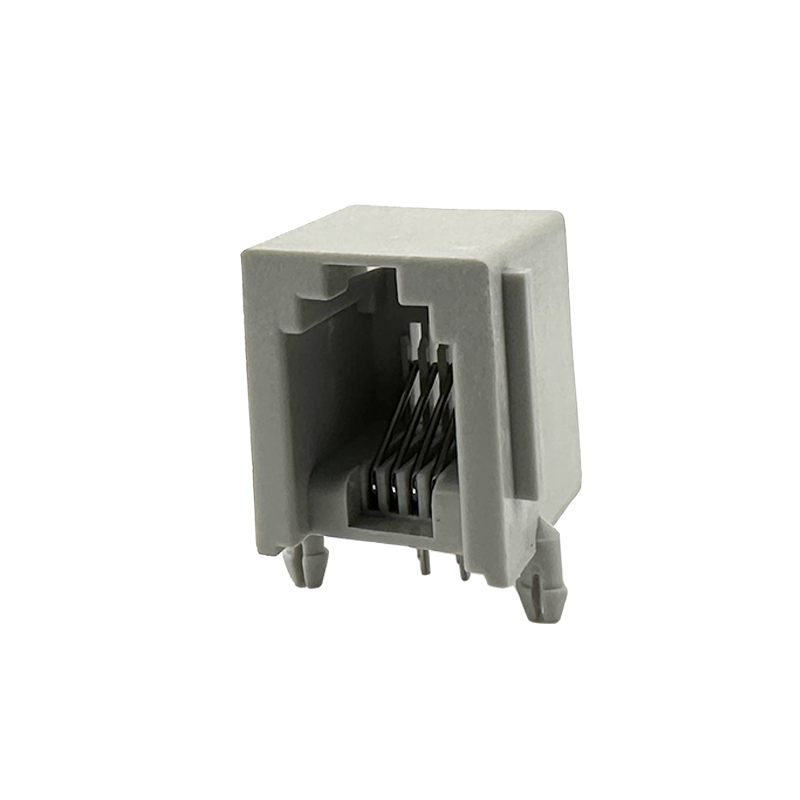

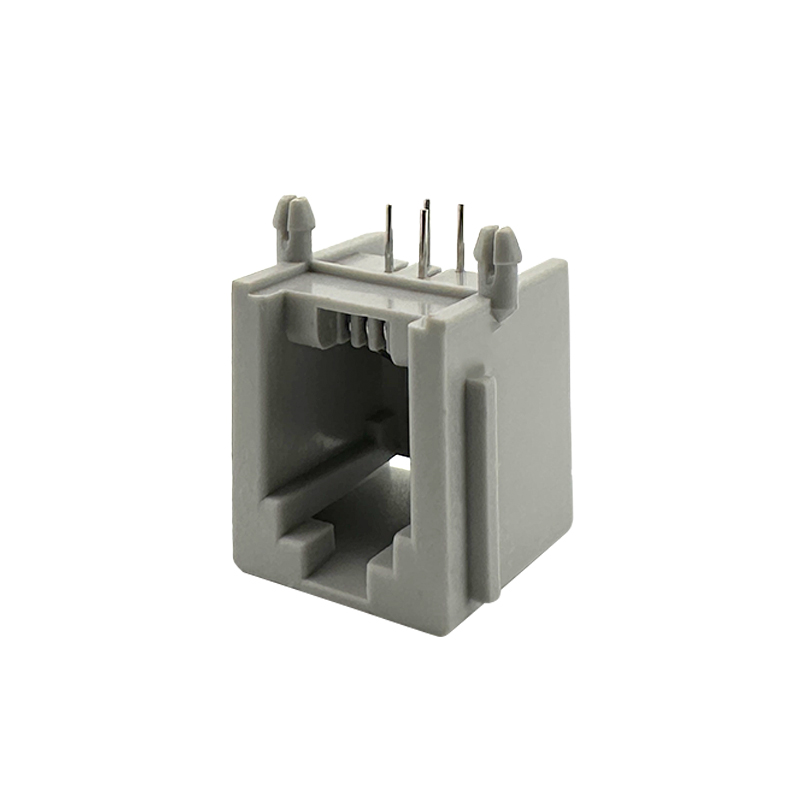

RJ12-6P6C Jack:RHTLY24-6P6C
