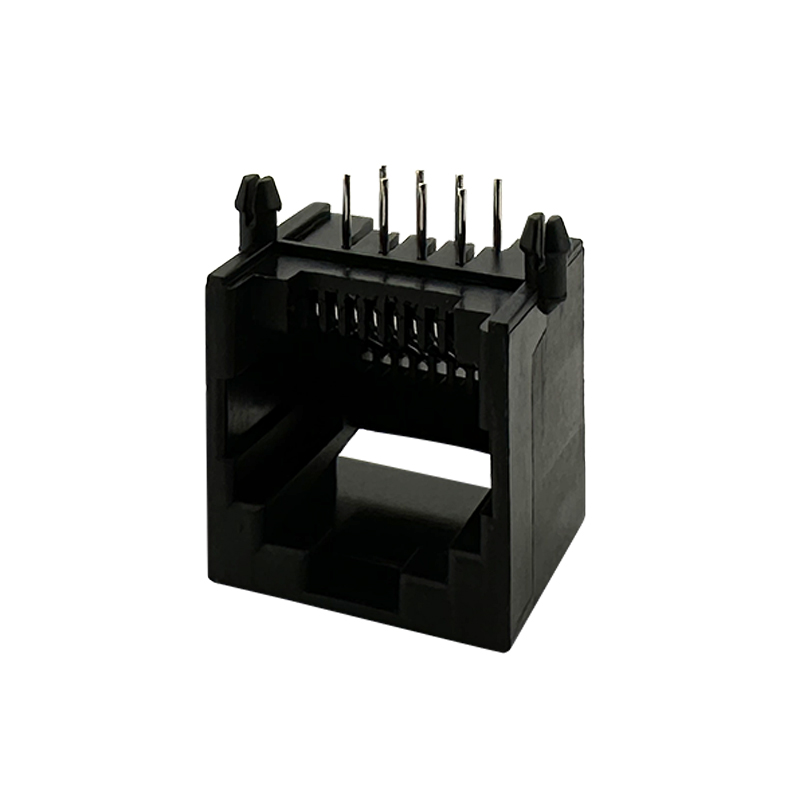

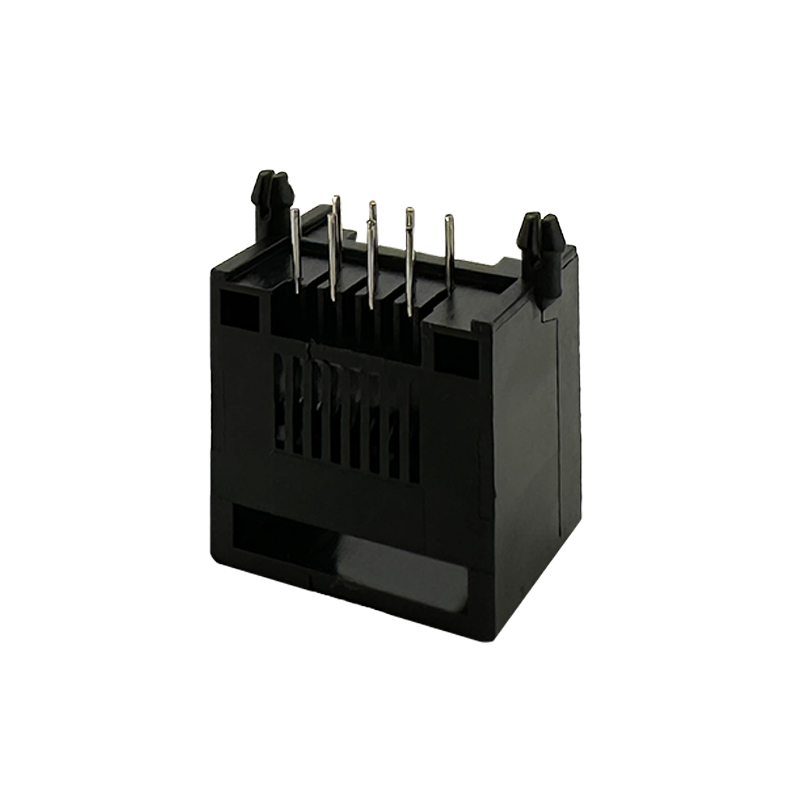

    RJ45-8P8C Jack:RHTLY33-8P8C

    Series Part No: RHTLY33-8P8C
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N


    Features

    -Contact Material: Gold-plated phosphor bronze (typically 6µ" to 50µ" gold for durability and signal integrity)

    -Housing Material: Thermoplastic (usually UL94V-0 flame-retardant)

    -Shielding: Shielded (metal shell for EMI protection) or unshielded

    -Latch Lock: Snap-in locking mechanism for secure cable connection


    Applications

    1.Ethernet Networking

    2.Structured Cabling Systems

    3.Structured Cabling Systems

    4.Structured Cabling Systems

    Specifications

    Material:

    Housing:    PBT+Glass Filled Polyester

    Flammability Rating : UL94V-0

    Contacts:  Phosphor Bronze ∅0.46mm

    Plating:     Gold Plating

    Electrical:

    Voltage Rating:           125VAC

    Current Rating:           1.5A

    Contact Resistance:    30mΩ Max.

    Insulation Resistance: 500MΩ Min.

    Dielectric Strength:    1000VAC Rms 50Hz,1 Min.

    Durability:                  600 cycles Min.

    Operation Temperatur

    Technical Documents

    Please contact us for more information.
