Features
-Connector Type: RJ11, which is the standard connector used for telephone cables in most regions.
-Configuration: 4P4C (4 Position 4 Conductor), meaning it has 4 positions and 4 conductors (pins). This configuration is typical for single-line telephone connections.
-Compatibility: Designed to accept standard RJ11 modular plugs, ensuring compatibility with various telephone devices, including analog phones, fax machines, and modems.
-Size: Compact and standardized size suitable for integration into telephone equipment, wall plates, patch panels, and other devices requiring telephone connectivity.
Applications
1.Residential Telephony
2.Office Telephony
3.Retail and Hospitality:
4.Industrial Applications
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

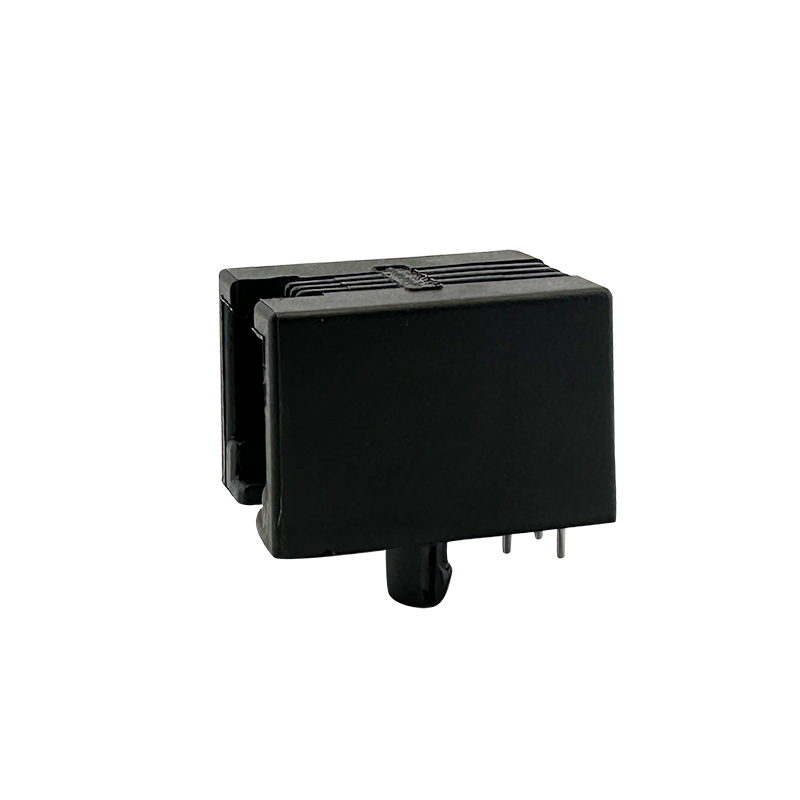

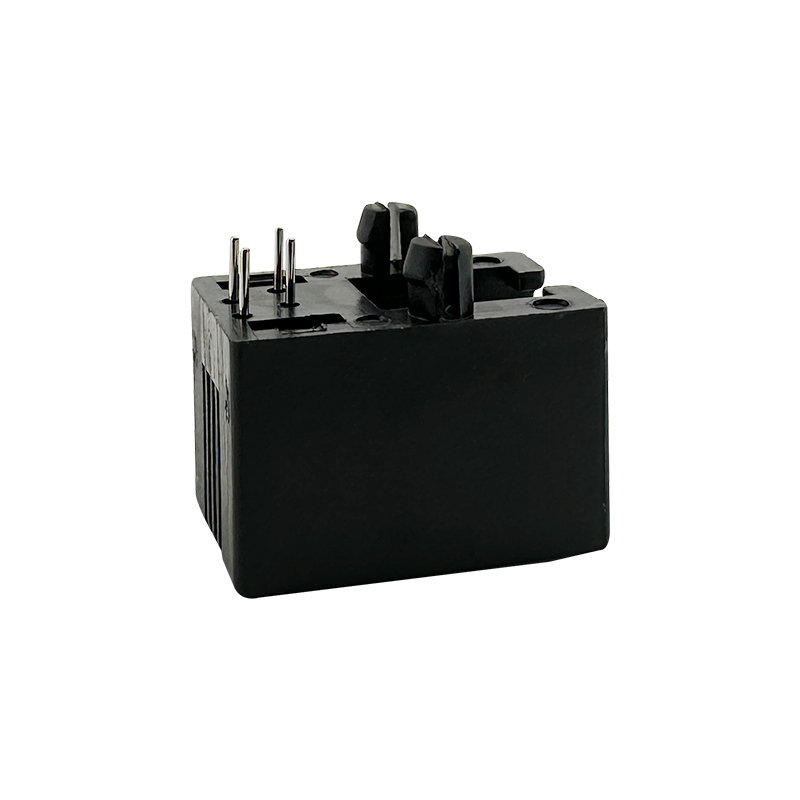

RJ11-4P4C Jack:RHTLY35-4P4C
