Features
-Connector Type: RJ45-8P8C stands for Registered Jack 45 with 8 positions and 8 contacts. It accommodates eight conductors (8P8C) arranged in four pairs, suitable for Ethernet cables conforming to standards such as Cat5, Cat6, and Cat6a.
-Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with various Ethernet cables and networking equipment.
-Construction: Typically made from durable materials such as plastic and metal components, designed to withstand mechanical stress, frequent plugging and unplugging, and environmental factors.
-Termination Options: Supports industry-standard termination methods, facilitating reliable connections to Ethernet cables through soldering, crimping, or punch-down techniques.
Applications
1.Network Equipment
2.Security and Surveillance
3.Industrial Networking
4.Telecommunications
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

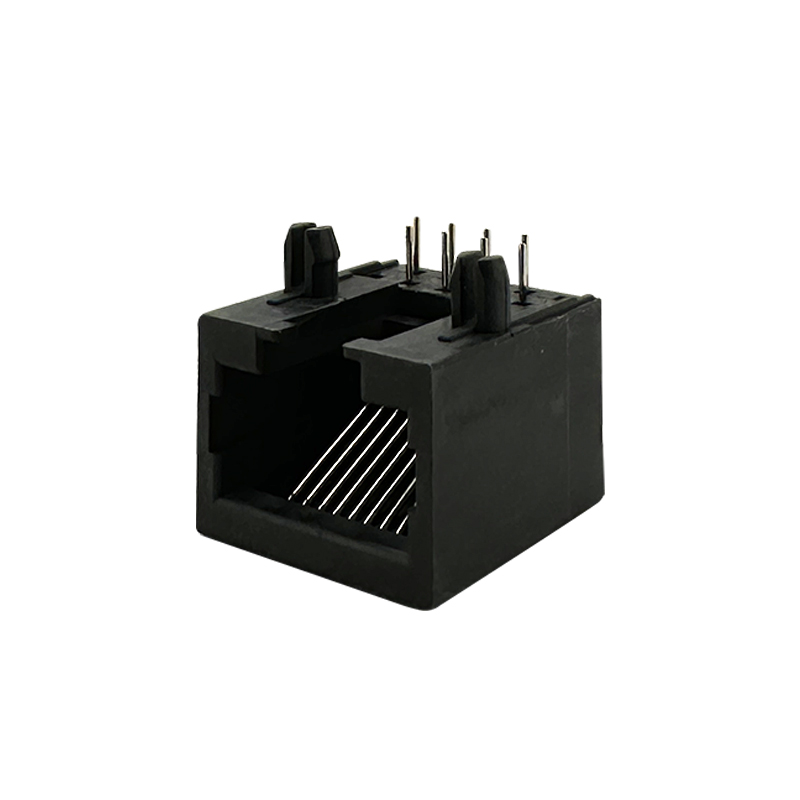

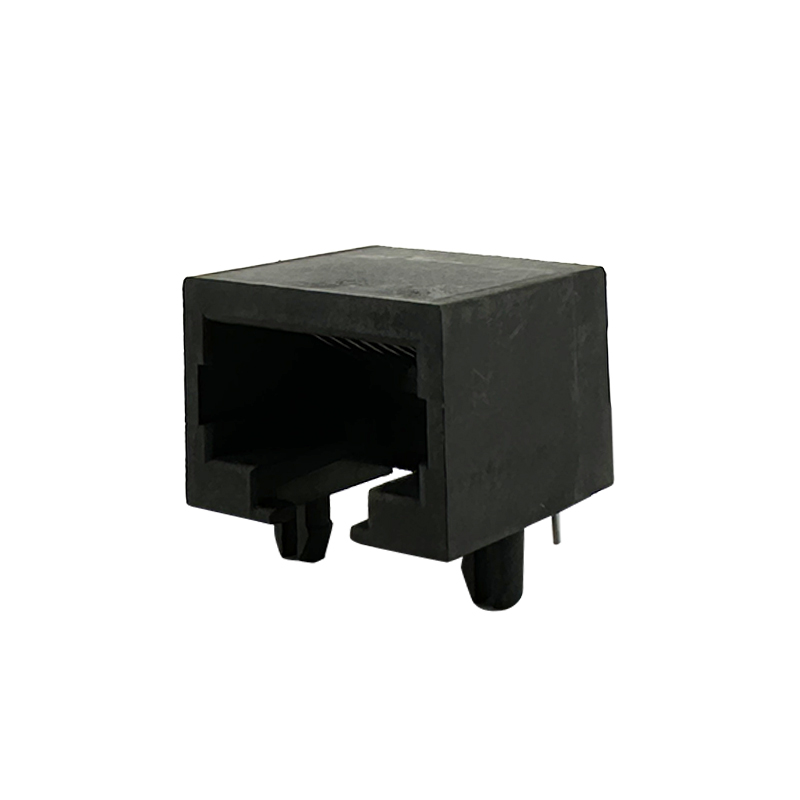

RJ45-8P8C Jack:RHTLY11-8P8C
