Features
-Design: Durable construction with gold-plated contacts for reliable signal transmission and longevity.
-Mounting: Can be mounted on PCBs (Printed Circuit Boards), telephone jacks, wall plates, and other telecom equipment, offering flexibility in installation and use.
-Signal Integrity: Maintains clear audio transmission and signal integrity over standard telephone lines, ensuring quality voice communication for multi-line telephony applications.
-Versatility: Suitable for various applications where multi-line analog telephone connections or specific data connections using RJ12 standard are required, including homes, offices, and industrial environments.
Applications
1.Small Business Telephony
2.Data Networking
3.Industrial Applications
4.Specialized Telecommunications Equipment
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

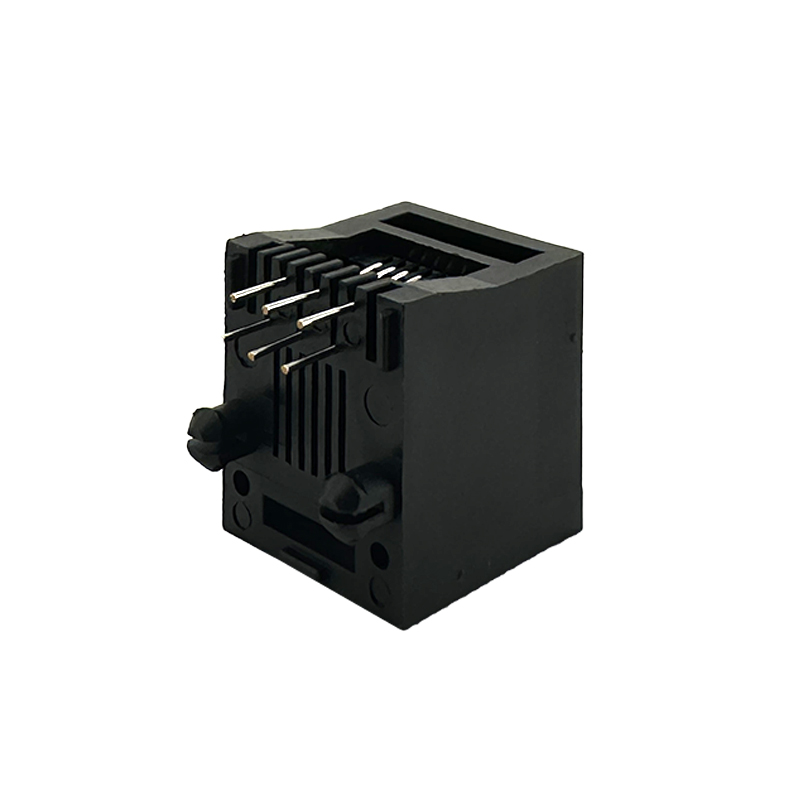

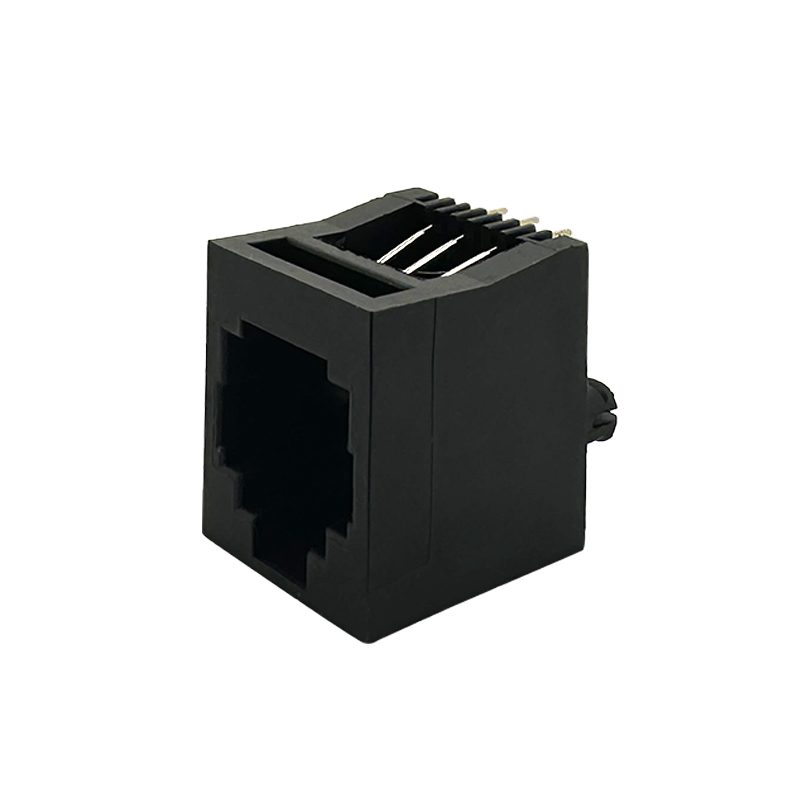

RJ12-6P6C Jack Vertical:RHTLY54-6P6C
