Features
-Connector Type: RJ45-8P8C stands for Registered Jack 45 with 8 positions and 8 contacts, accommodating Ethernet cables with eight conductors (8P8C) arranged in four pairs.
-Compact Design: The absence of a shell makes the RJ45 jack more compact and lightweight compared to standard RJ45 connectors with a protective housing.
-Exposed Contacts: The internal contacts and terminals of the RJ45 jack are visible and accessible, typically arranged in a standard configuration to accommodate Ethernet cables.
-Customization: Offers flexibility for custom wiring configurations or adaptations to specific networking requirements without the constraints of a standard RJ45 shell.
Applications
1.Custom Electronics and Prototyping
2.Embedded Systems and IoT Devices
3.Custom Networking Solutions
4.Testing and Diagnostic Equipment
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

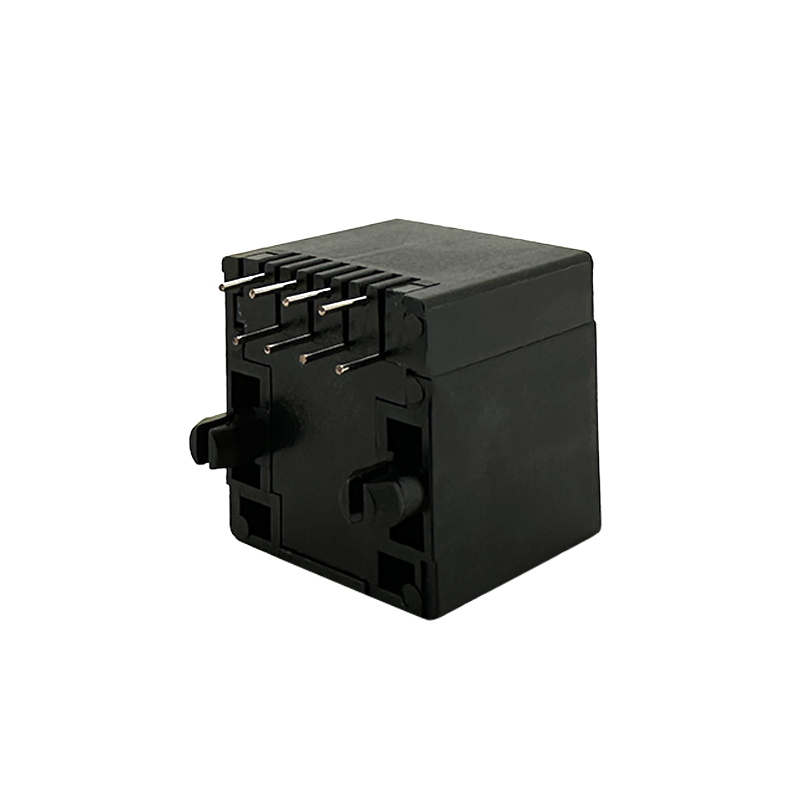

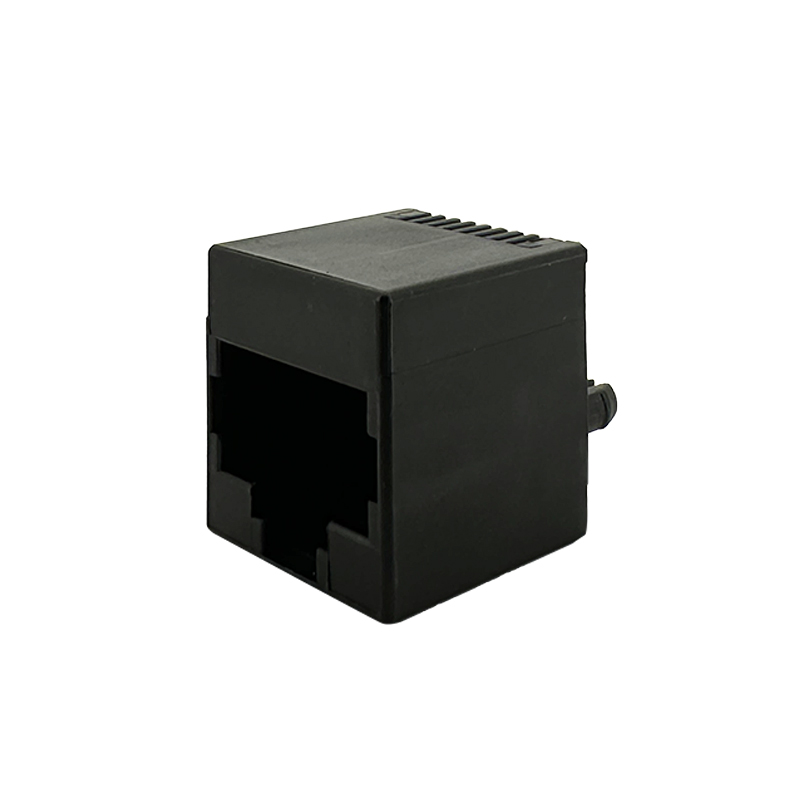

RJ45-8P8C Jack without SHELL:RHTLY57-8P8C
