Features
-Space-Saving Design: Vertical orientation allows for efficient use of space on PCBs (Printed Circuit Boards) and in modular jack panels, ideal for applications where horizontal space is limited.
-Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with a wide range of Ethernet cables and networking equipment.
-Durability: Constructed from durable materials such as plastic and metal components, designed to withstand frequent plugging and unplugging, mechanical stress, and environmental factors.
-Termination Options: Supports industry-standard termination methods, facilitating reliable connections to Ethernet cables through soldering or crimping.
Applications
1.Telecommunications and VoIP Systems
2.Industrial Automation and Control
3.Residential Networking
4.Security and Surveillance Systems
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

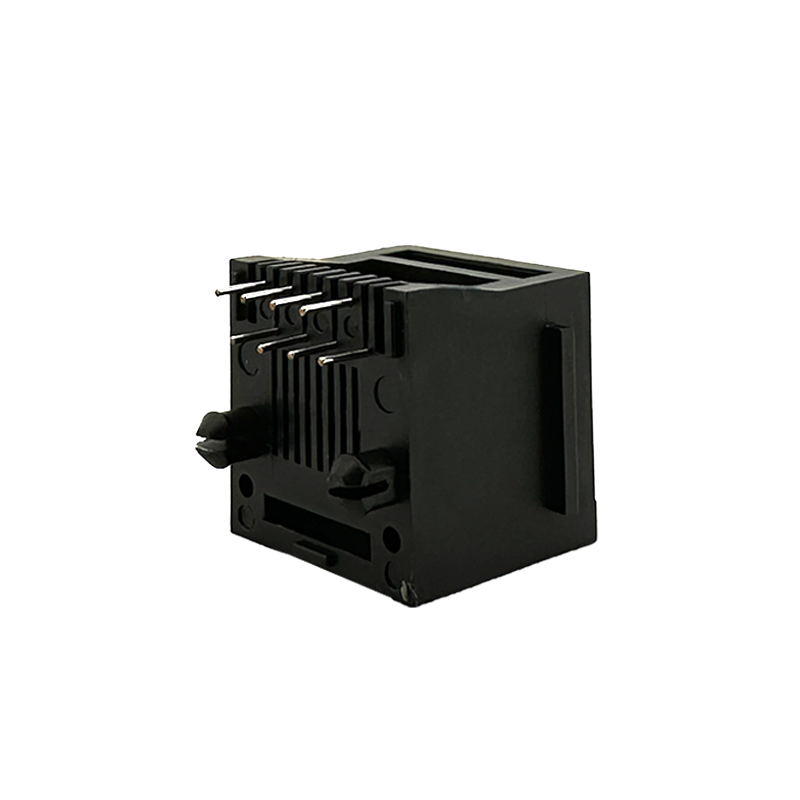

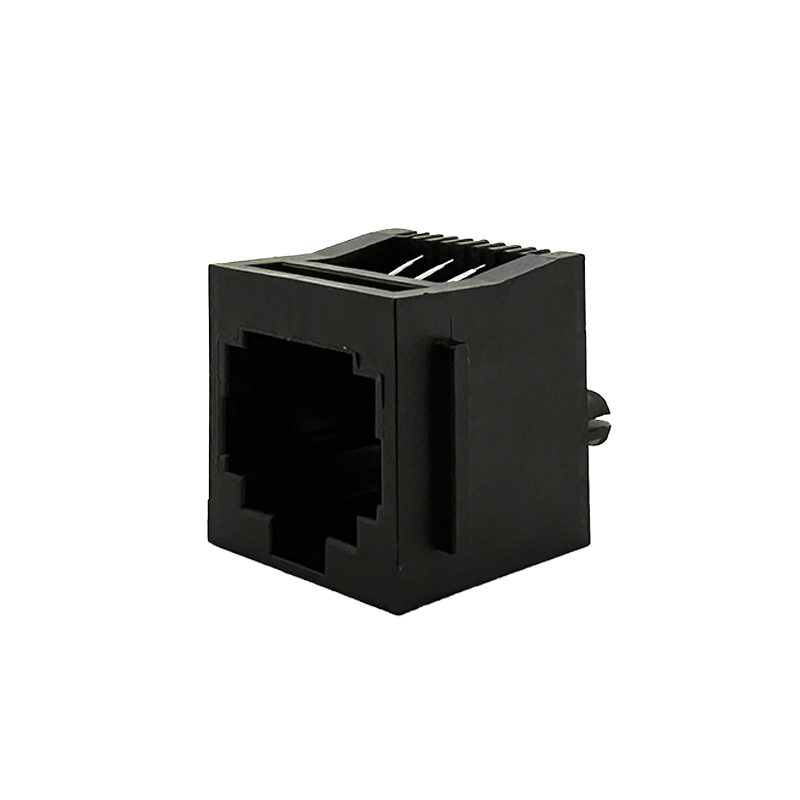

RJ45-8P8C Jack Vertical:RHTLY56-8P8C
