Features
-This configuration is useful in applications where space is limited or where a vertical space-saving design is preferred.
-The design allows for easy connections and disconnections, which is essential in both residential and commercial setups.
-The plastic material helps the jack maintain its long-term performance and resist wear from frequent use.
-This feature is particularly useful in environments where movement or vibration could cause loose connections.
Applications
1.Multi-Line Telephone Systems
2.Point-of-Sale (POS) Systems
3.Fax Machines
4.Security Systems
Specifications
Material:
Housing: Engineering Thermoplastic
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze
Plating: Gold Plating Over Nickel in Contact.
Tin Plating Over Nickel in Solder Area.
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 40mΩ Max.
Insulation Resistance: 1000MΩ Min. @500VDC
Dielectric Strength: 1000VAC Rms 60Hz,1 Min.
Durability: 750 cycles Min.
Operation Temperature:-20°C~+75°C
Technical Documents
Please contact us for more information.

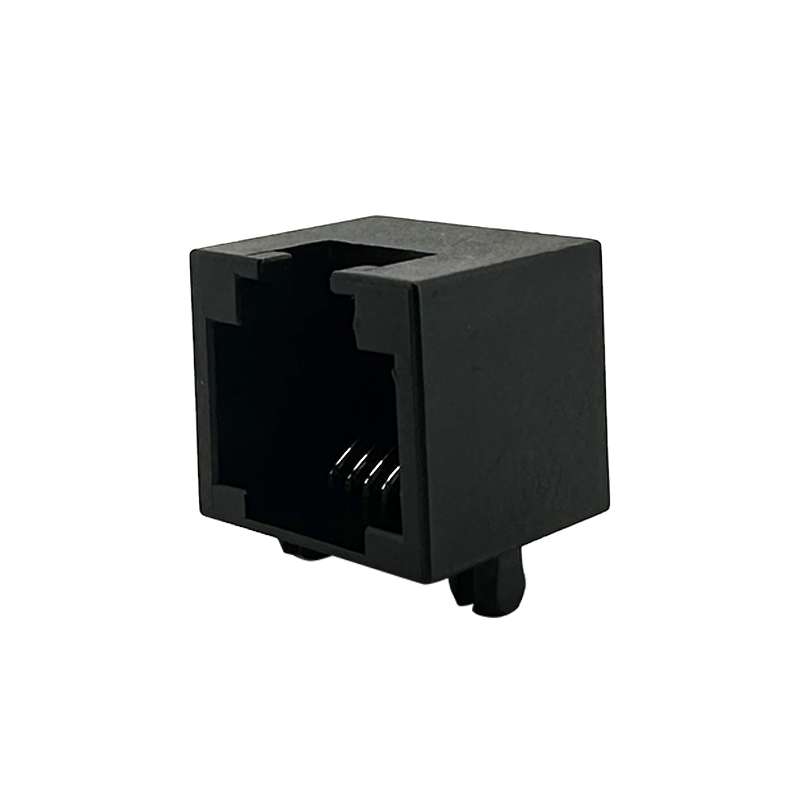

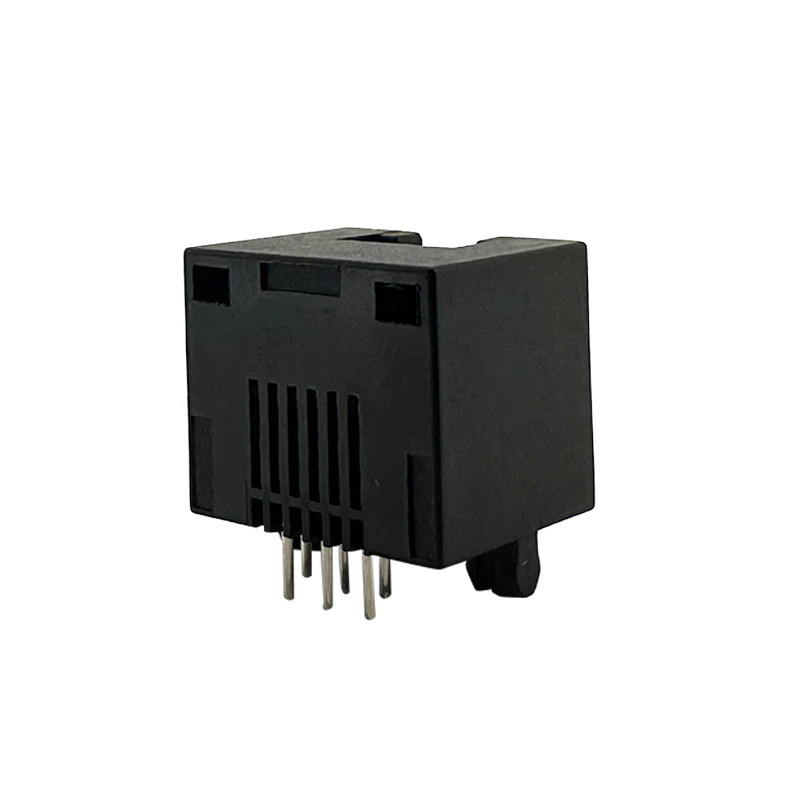

RJ12 6P6C Jack Vertical:RHTLY52-6P6C
