    Precision Multiturn Wirewound Potentiometer 3540S:3540S

    Series Part No: 3540S
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews
    Precision Multiturn Wirewound Potentiometer With 3540S Type

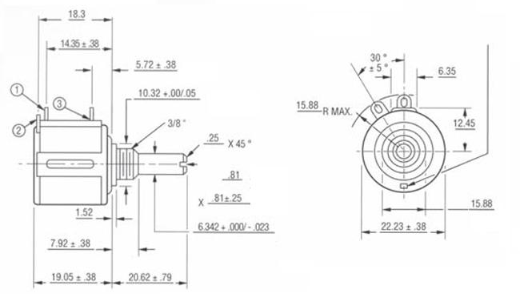

    size:


    Electrical Characteristics
    Standard Resistance Range: 100~100KΩ
    Resistance Tolerance: ±5%
    Independent Linearity: ±0.5%
    Effective Electrial Travel: ≥3600°±10°
    Treninal Resistance: ≤0.2% or 5Ω
    Noise: ≤3%R or 5Ω
    Insulation Resistance: R≥1GΩ
    Withstand Voltage: 101.3kPa 710V, 8.5kPa 470V
    Environment Characteristics
    Rated Power (Max Voltage: 500V): +70 ℃ 2W, +125 ℃ 0W
    Operating Temperature: -55 ℃ ~ +125 ℃
    Temperature Coefficient: ± 100ppm / ℃
    Temperature Variation: △ R ≤ 2% R, △ (Uab / Uac) ≤ ± 1%
    Vibration: 390m/s2, 4000 times △ R ≤ ± 1% R
    Collision: 10 ~ 500Hz, 0.75mm, or 98m/s2, 6h,△ R ≤ ± 1% R, △ (Uab / Uac) ≤ ± 2%
    Climate Category: △ R ≤ 3% R, R1 ≥ 100MΩ
    Electrical Endurance at 70 ℃: 2W, 1000h, R ≤ ± 3% R
    Mechanical Endurance: 10000cycles, △ R ≤ ± 3% R
    Steady Damp-Heat: △ R ≤ ± 3% R, R1 ≥ 100MΩ
    Physical Characteristics
    Total mechanical travel: ≥ 3600 ± 10 °
    Staring torque: ≤ 36mN . m
    How To Order:
    EX:  3540 S - 103
                    (1)（2）（3）
    （1） 3540: Model
    （2）  Style: S-Termination Style Solder Lug
    （3）  103:Resistance Code
