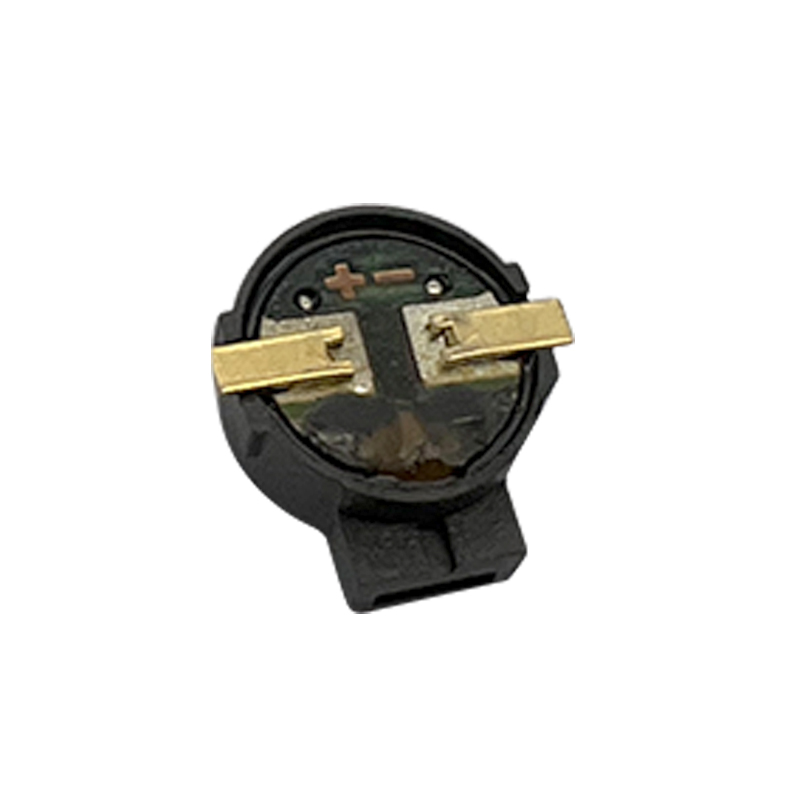

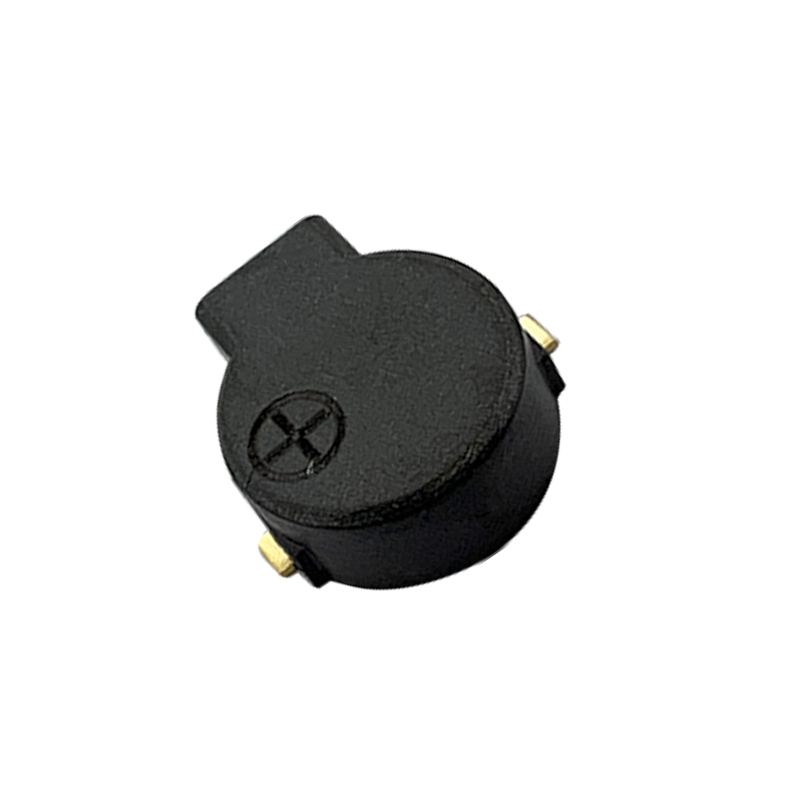

SMD Electro-magnetic Buzzer:RE-B-SMT-09*04

Series Part No: RE-B-SMT-09*04

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Parameters:
Rated Voltage : 5V
Operating Voltage : 2～5V
Coil Resistance : 30±3Ω
Resonant Frequency : 2700Hz
Sound Output at 10cm : ≥90dB
Current Consumption : ≤80mA
Operating Temperature : -20℃～+70℃
Storage Temperature : -30℃～+80℃
Weight : 0.8g
Housing Material:PPS
RoHS: Yes

SMD Electro-magnetic Buzzer:RE-B-SMT-09*04
