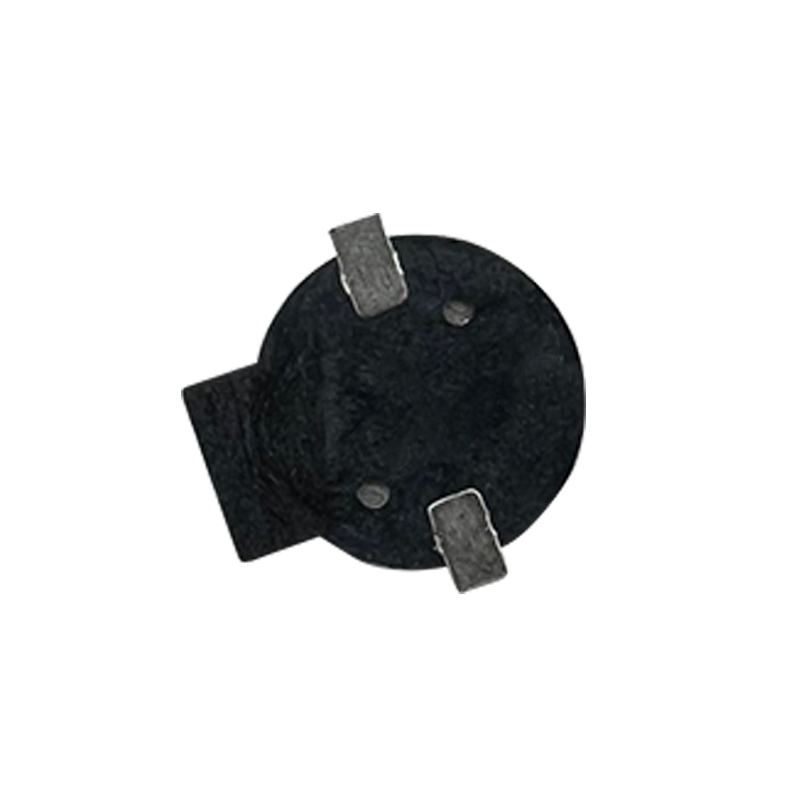

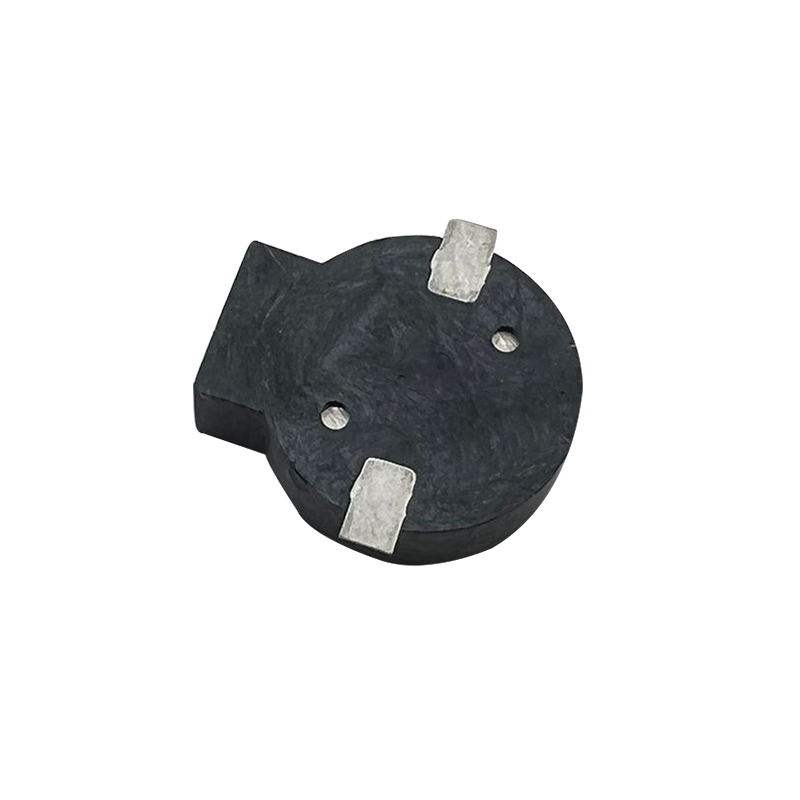

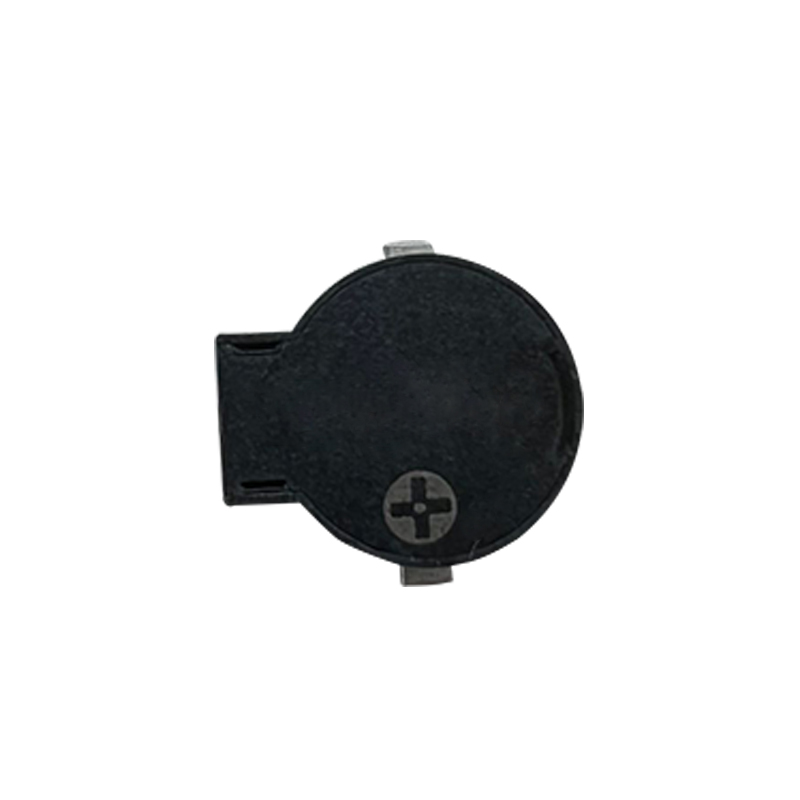

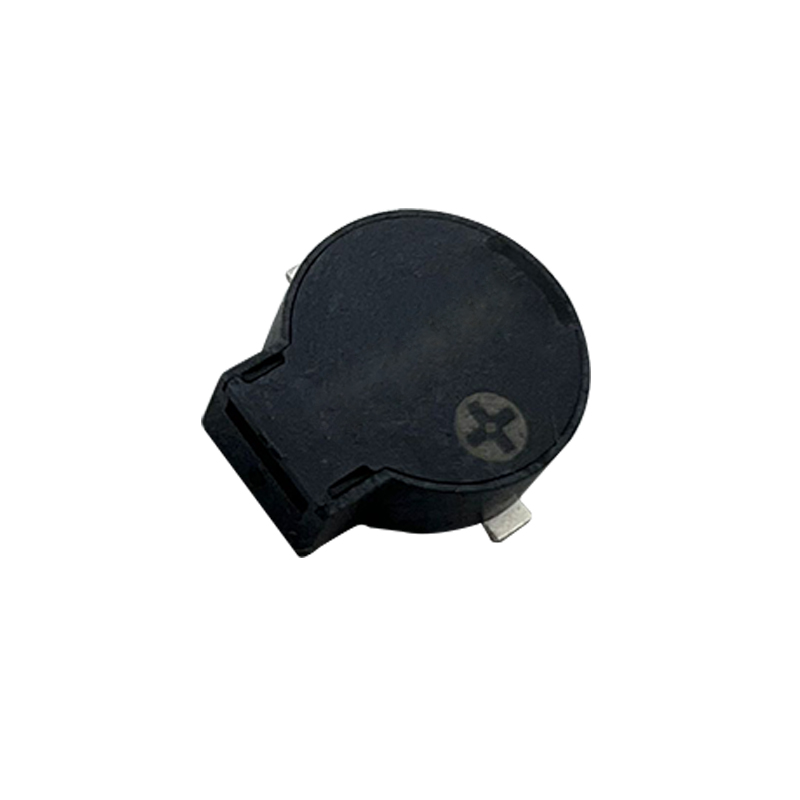

SMD Electro-magnetic Buzzer:RE-B-SMT-09*2.5

Series Part No: RE-B-SMT-09*2.5

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Rated Voltage 3 Vo-p
Operating Voltage 2~5Vo-p
Rated Current 80mA Max.
S.P.L.(@10cm) 88dB Min. at Rated Voltage
Coil Resistance(DC) 16±3Ω
Resonant Frequency 2731Hz
Operating Temp -30~+70℃
Weight 0.8g

SMD Electro-magnetic Buzzer:RE-B-SMT-09*2.5
