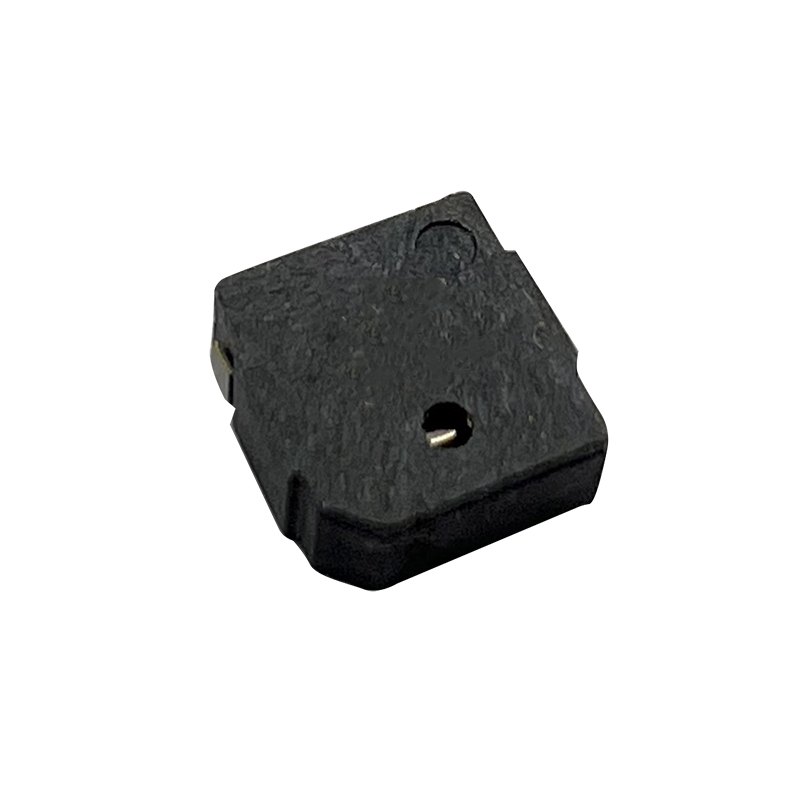

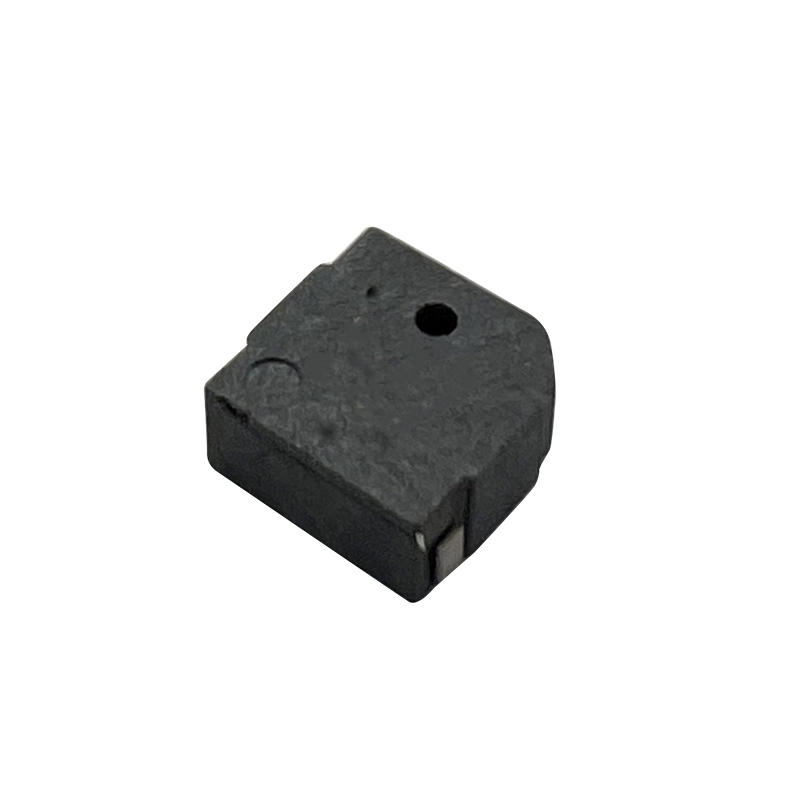

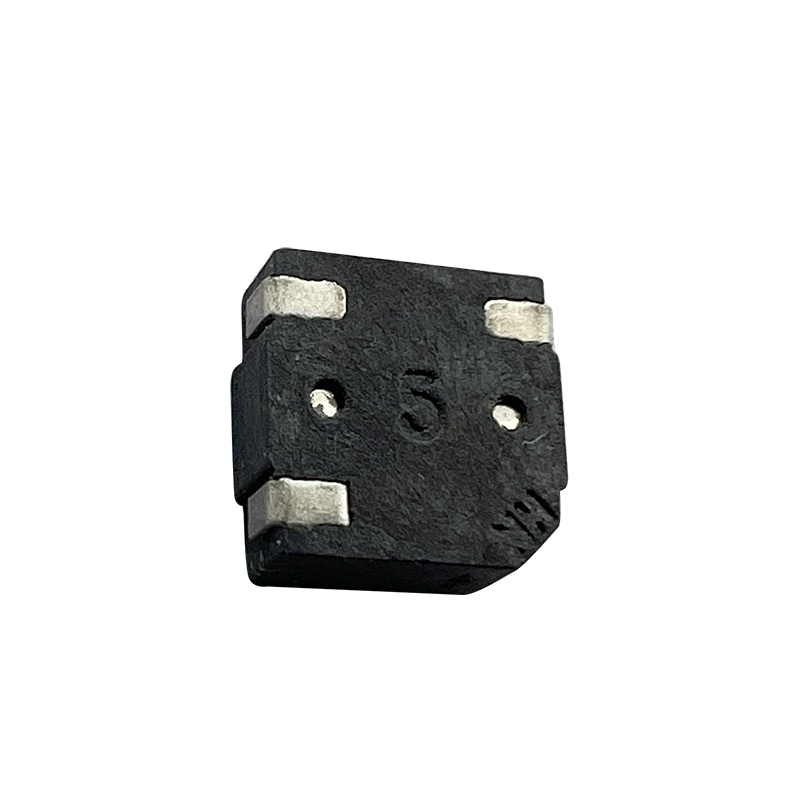

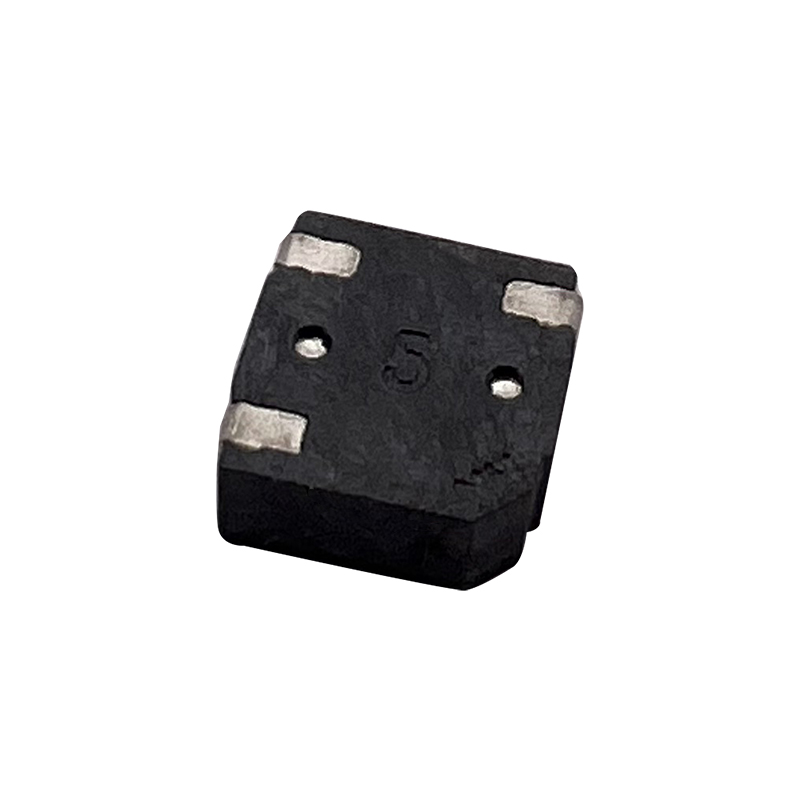

SMD Electro-magnetic Buzzer:RE-B-SMT-05*02

Series Part No: RE-B-SMT-05*02

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Size:5*5*2.0mm
Rated Voltage 3.0Vo-p Operating Voltage 2~4Vo-p Max.

Rated Current 110mA Min.S.P.L.(@10cm) MIN. 72dB

at Rated Voltage at 10cm Coil Resistance(Ω) 12±3Ω Resonant

Frequency 4000Hz Operating Temp -20~+70℃ Weight 0.5g

SMD Electro-magnetic Buzzer:RE-B-SMT-05*02
