Features
-Barrier Design: Provides insulation between terminals to prevent short circuits and improve safety.
-Modular Configuration: Available in various pin configurations to suit different connection needs.
-Contact Material: Brass or copper with tin/nickel plating for better conductivity and corrosion resistance.
-Insulation Body: Made of flame-retardant plastic (such as PA66 or phenolic) for high durability and heat resistance.
Applications
1.Power Distribution & Electrical Panels
2.Motor & Pump Controllers
3.Renewable Energy Systems
4.Automotive & Heavy Machinery
Specifications
Material
Screw: M3.5,Steel,Ni Plated
Pin header: Brass, Tin Plated
Housing: PA66, UL94V-0,Black
Electrical
Rated voltage: 300V
Rated current: 20A
Wire range: 22~12AWG 2.5mm²
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC2000V / 1 min
Mechanical
Temp. Range: -40 ° C ~ + 105 ° C
Torque: 0.8Nm (7.0Lb.in)
Technical Documents
Please contact us for more information.

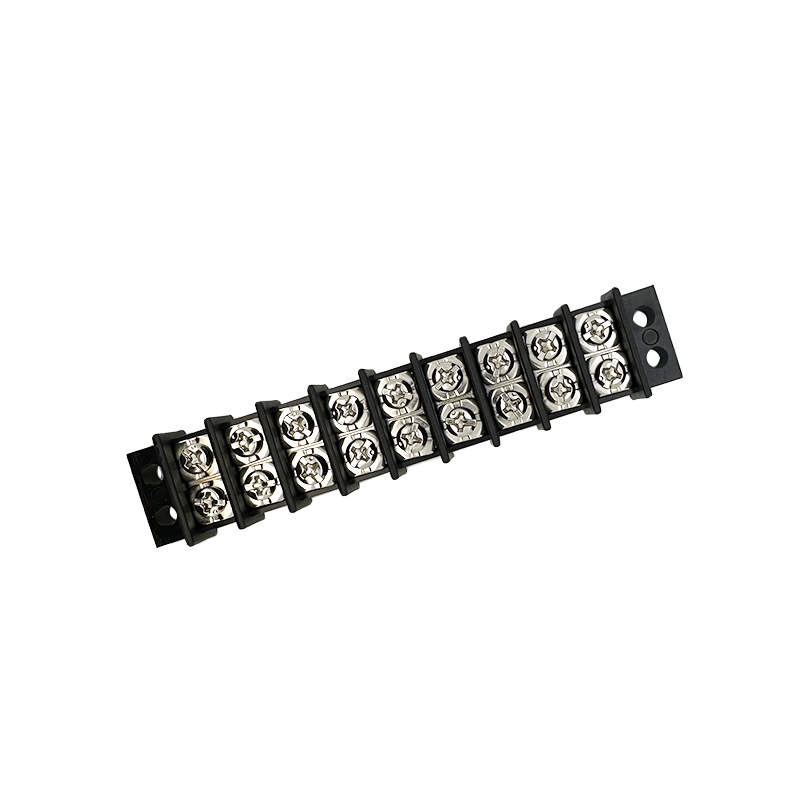

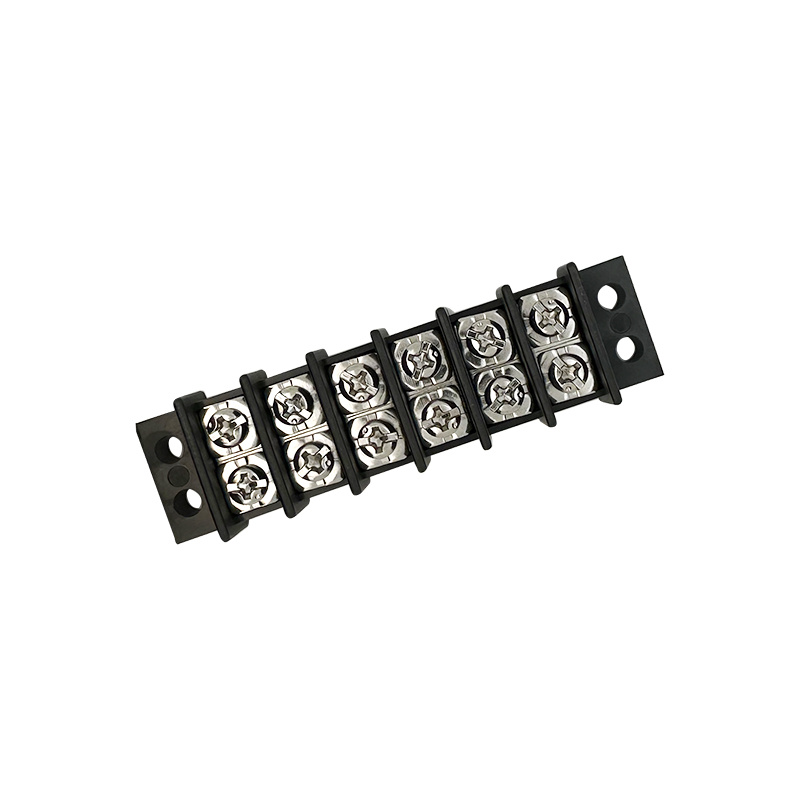

Pitch 9.5mm Barrier Terminal Block:RHTBYS-9.50A
