7DG28S-A
Features
-Material: Terminal blocks are typically made from materials such as nylon or thermoplastic for insulation and brass or tin-plated brass for conductive parts, ensuring durability and conductivity.
-Wire Size Compatibility: Specifies the range of wire sizes (usually in AWG or mm²) that can be accommodated by the terminal block, ensuring compatibility with various wiring needs.
-Ease of Installation: Designed to be easily integrated into PCB designs, they facilitate straightforward assembly processes and provide a secure connection between the PCB and external wires or components.
-Locking Mechanism: Some terminal blocks may feature locking mechanisms such as screws or clips to secure wires firmly in place, preventing accidental disconnection.
Applications
1.Industrial Control Panels
2.Power Supplies
3.Automation Systems
4.Telecommunications Equipment
Specifications
Electrical
Voltage rating : 300V
Current rating : 15A
Contact Resistance: 20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/Min
Wire range: 14-22AWG 2.5mm2
Operation temperature : -40ºC to+105ºC
Torque : 5.1kgf-cm/4.4Lbin
MATERIAL
Housing: PA66 UL94V-0
Terminal: Brass,Tin plated
Screws: M3 Steel Nickel Plated
Technical Documents
Please contact us for more information.

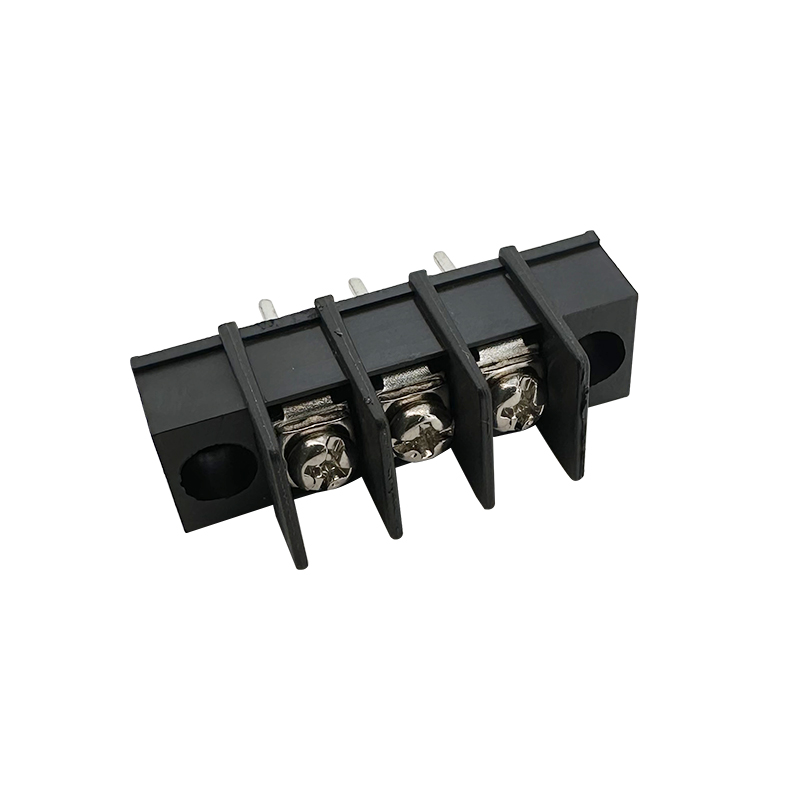

7DG28S-A 7.62mm without Mount Hole Barrier Terminal Block PCB Type:RHTBY5B-7.62
