Features
-Housing Material: The connector housing is typically made from durable thermoplastics such as PBT (Polybutylene Terephthalate) or Nylon. These materials provide mechanical strength and resistance to heat, chemicals, and environmental factors.
-Polarization and Keying: Some DIP plug IDC connectors may feature polarization features or keying options to ensure proper alignment during mating. This prevents incorrect connections that could damage components or affect performance.
-Current Rating and Voltage: Rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications.
-Environmental Resilience: Built to operate reliably in various environmental conditions, including temperature fluctuations, vibration, and mechanical stress.
Applications
1. Medical Devices and Instrumentation
2. Consumer Electronics
3. Industrial Control Systems
4. Automotive Electronics
Specifications

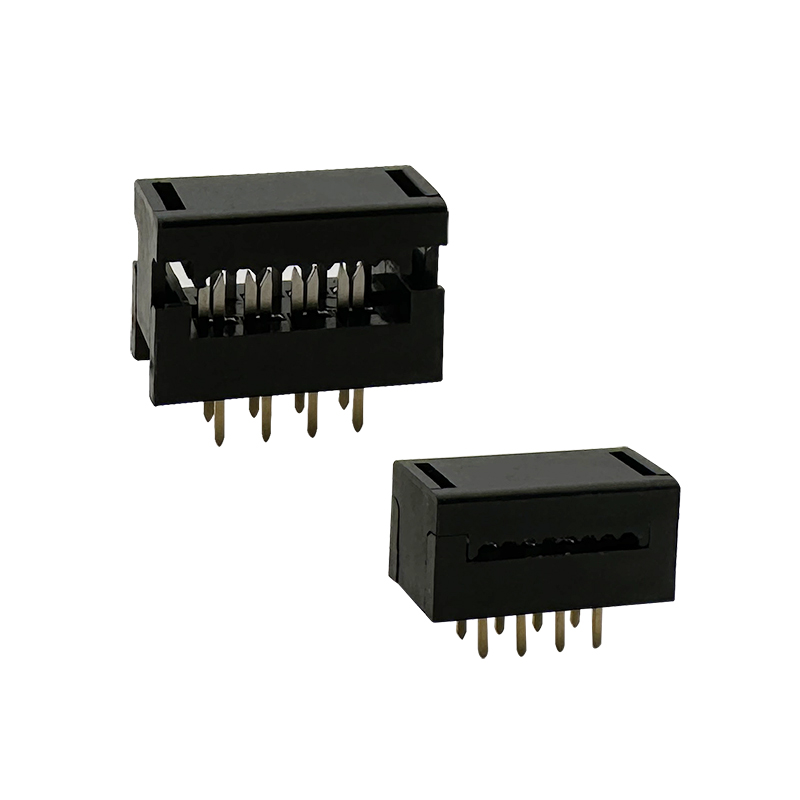

2.54mm Pitch Dip Plug Connector
Order Information:
RHTAY05-XX-B
XX-No.of 06~64pin
Color: B=Black G=Gray
Material:
Housing: PBT UL94V-0, Black
Contacts: Brass
Plating:Au or Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 1000V AC / Minute
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
