PCB Terminal Block Rising Clamp: Elevate Your PCB Connections with 5.00mm & 5.08mm Right-Angle Solutions
In the fast-paced world of electronic connectivity, reliability, space efficiency, and ease of installation are non-negotiable—especially when it comes to PCB wiring. At RHTECP, we’re proud to introduce our
RHTPCB Terminal Block Rising Clamp series, specifically engineered with 5.00mm and 5.08mm pitches, right-angle design, and screw-driven rising clamp technology to redefine consistency and performance for your projects. Visit our official website
WWW.RHTECP.COM to explore the full range and unlock tailored connectivity solutions.
As a trusted supplier of high-performance electronic components, RHTECP has long focused on merging innovation with practicality—our rising clamp terminal blocks are a testament to this commitment. Designed for wire-to-board connections that demand stability, durability, and adaptability, this series addresses the pain points of engineers and manufacturers across industrial, telecommunications, consumer electronics, and automotive sectors alike

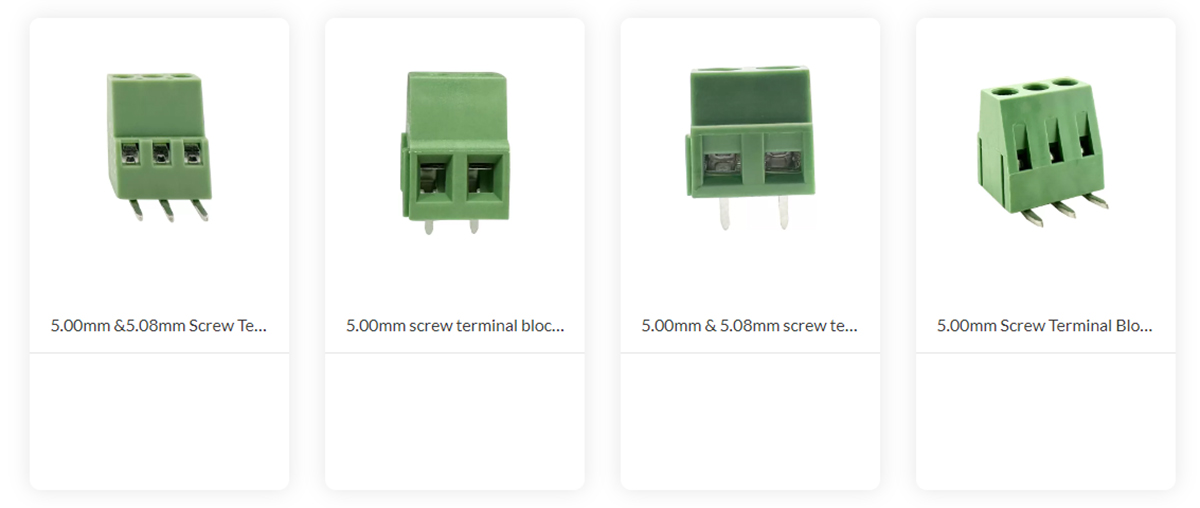

Let’s dive into the core features that make the RHTPCB 5.00mm & 5.08mm Screw Terminal Block Rising Clamp Right Angle stand out in the market:
1. Precision Pitch Design for Versatile Compatibility
Available in two industry-standard pitches—5.00mm and 5.08mm—our rising clamp terminal blocks offer seamless integration with a wide range of PCB layouts. The 5.00mm pitch optimizes space for high-density designs, while the 5.08mm pitch caters to applications requiring slightly more wire clearance, making them ideal for both compact consumer electronics and robust industrial control systems This versatility ensures that whether you’re designing a small IoT device or a large-scale industrial panel, our terminal blocks fit your exact specifications.
2. Right-Angle Orientation: Maximize Space Efficiency
The integrated right-angle design is a game-changer for space-constrained PCB assemblies. By positioning the wire entry horizontally relative to the PCB, this design eliminates the need for vertical clearance, allowing for slimmer device profiles and more efficient use of board real estate . This is particularly valuable in applications like automotive electronics, telecommunications equipment, and compact industrial enclosures, where every millimeter counts.
3. Screw-Driven Rising Clamp: Secure, Vibration-Resistant Connections
At the heart of our terminal block is the screw-driven rising clamp mechanism—engineered to deliver firm, gas-tight connections that resist vibration and ensure long-term reliability. When the screw is tightened, the clamp lifts vertically to securely grip wires (accommodating 0.2–3.6 mm² solid or stranded cables), preventing loose connections even in harsh operating environments. Unlike standard terminal blocks, the rising clamp design also allows for repeated wire insertion and removal, simplifying maintenance and modular assembly
4. Premium Materials & Compliance for Safety & Durability
We prioritize quality at every step: the terminal contacts are made of tinned nickel-plated brass for low contact resistance and oxidation prevention, while the housing is crafted from UL94-V0 flame-retardant PA66 for superior insulation and durability Our terminal blocks operate reliably in a wide temperature range of -40°C to +105°C, withstand AC 1600V withstanding voltage, and comply with RoHS, REACH, and UL standards—ensuring safety and compliance for global applications
5. Easy Installation & Customization
Designed with assembly efficiency in mind, our rising clamp terminal blocks support through-hole reflow (THR) or SMT mounting, with guided pins that prevent solder wicking during reflow . The modular pole design (2P–24P) allows for customizable configurations, so you can tailor the terminal block to your project’s exact needs. Whether you’re a manufacturer looking for mass-production compatibility or an engineer prototyping a custom solution, our terminal blocks streamline the installation process.
From industrial control systems and telecommunications equipment to consumer electronics and automotive applications, the RHTPCB Terminal Block Rising Clamp series delivers consistent performance where it matters most <superscript:2><superscript:12>. At RHTECP, we don’t just supply components—we provide solutions that elevate your products’ reliability and performance.
Ready to enhance your PCB connections with a terminal block that combines precision, durability, and space efficiency? Visit
WWW.RHTECP.COM to browse the full specifications, download technical documents, or contact our sales team for personalized support. Whether you need guidance on product selection, customization options, or technical details, we’re here to help you find the perfect connectivity solution.
